Streaming Scheduler – Help

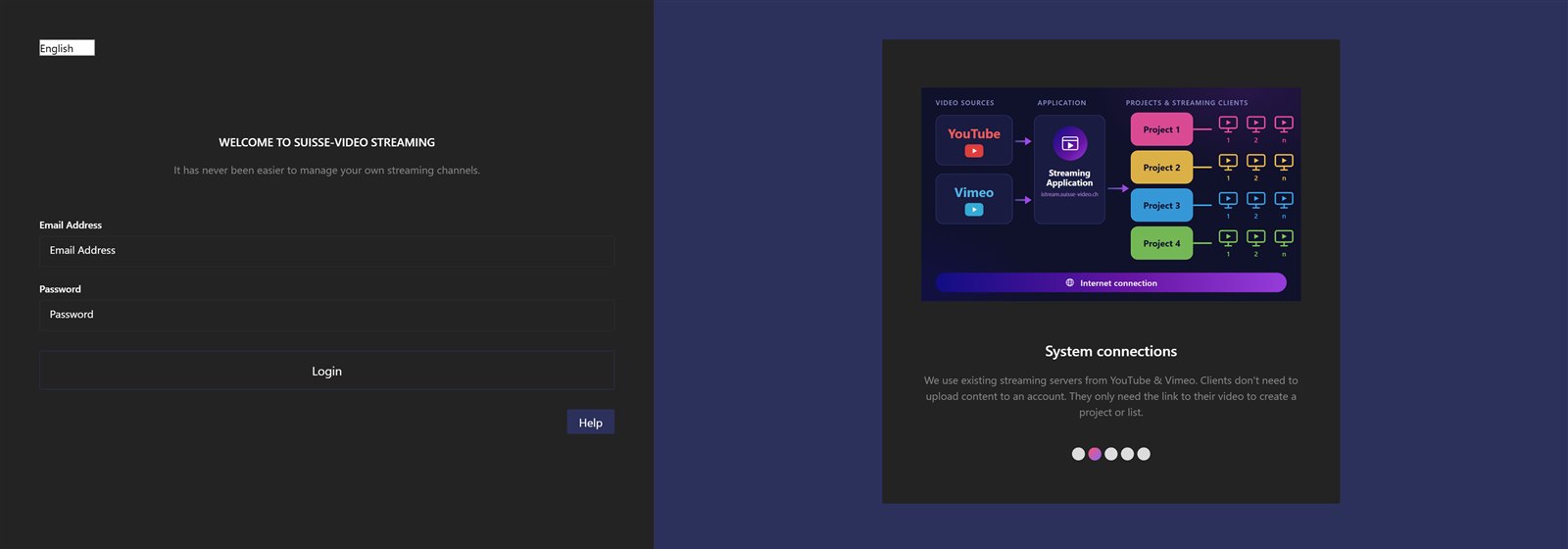

Login

▶ Watch as animation

To use the streaming application you need to sign in. If you do not have credentials yet, please contact us: support@suisse-video.ch.

If you have credentials, go to istream.suisse-video.ch and sign in. The language can be chosen on the login page. The application is available in German, English, French and Italian.

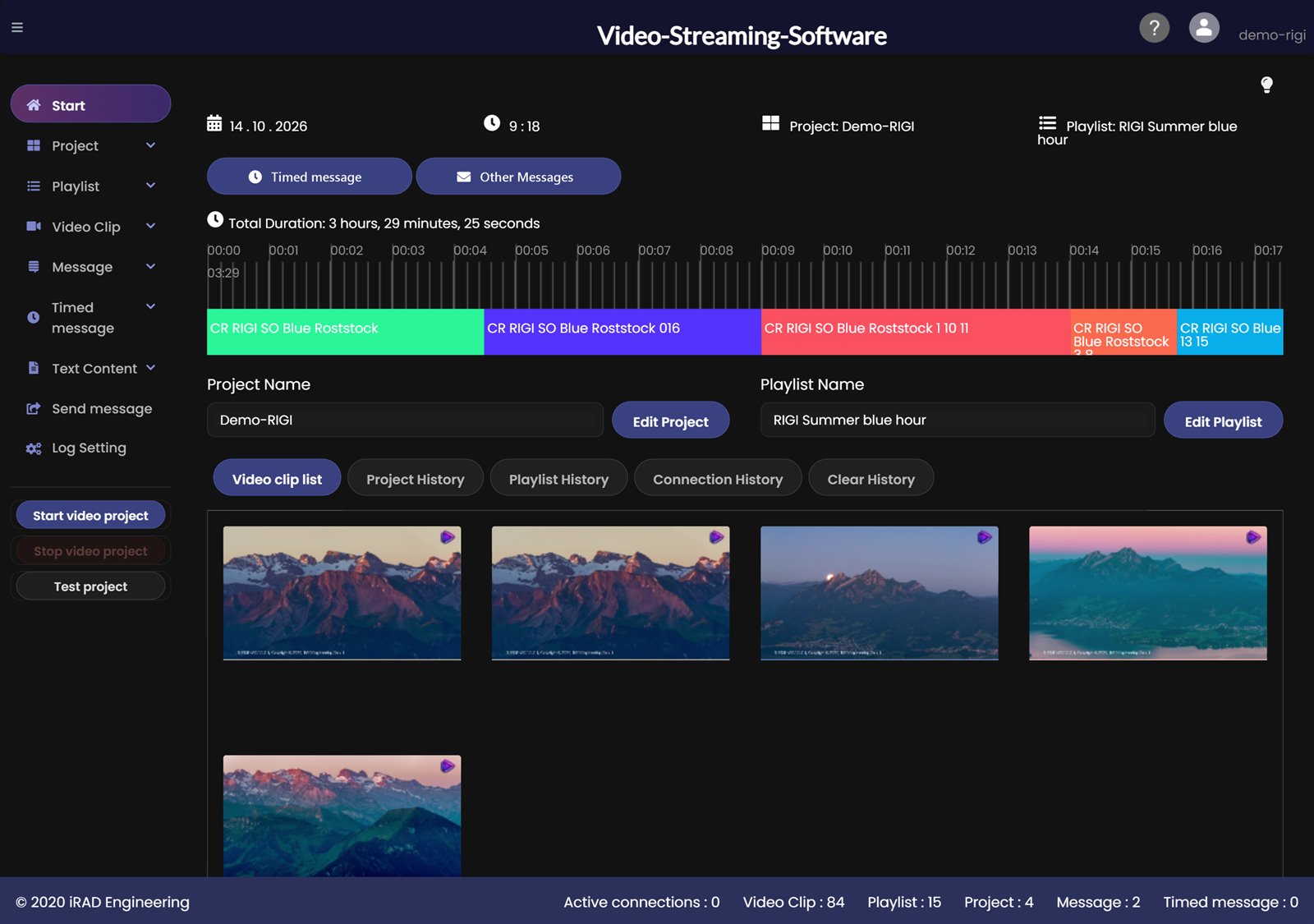

Start screen

▶ Watch as animation

After signing in you see the start screen. From here you reach every function of the application:

1. Start – this dashboard with the selected project and playlist, the timeline of the running clips and the history lists.
2. Project – create and manage your projects.
3. Playlist – create and manage your playlists.
4. Video Clip – create and manage your video clips.
5. Message – create and manage your messages.
6. Timed message – create and manage your timed messages.
7. Text Content – create formatted text such as daily menus that appear instead of the video at set times.
8. Send message – send a live message to the selected project.

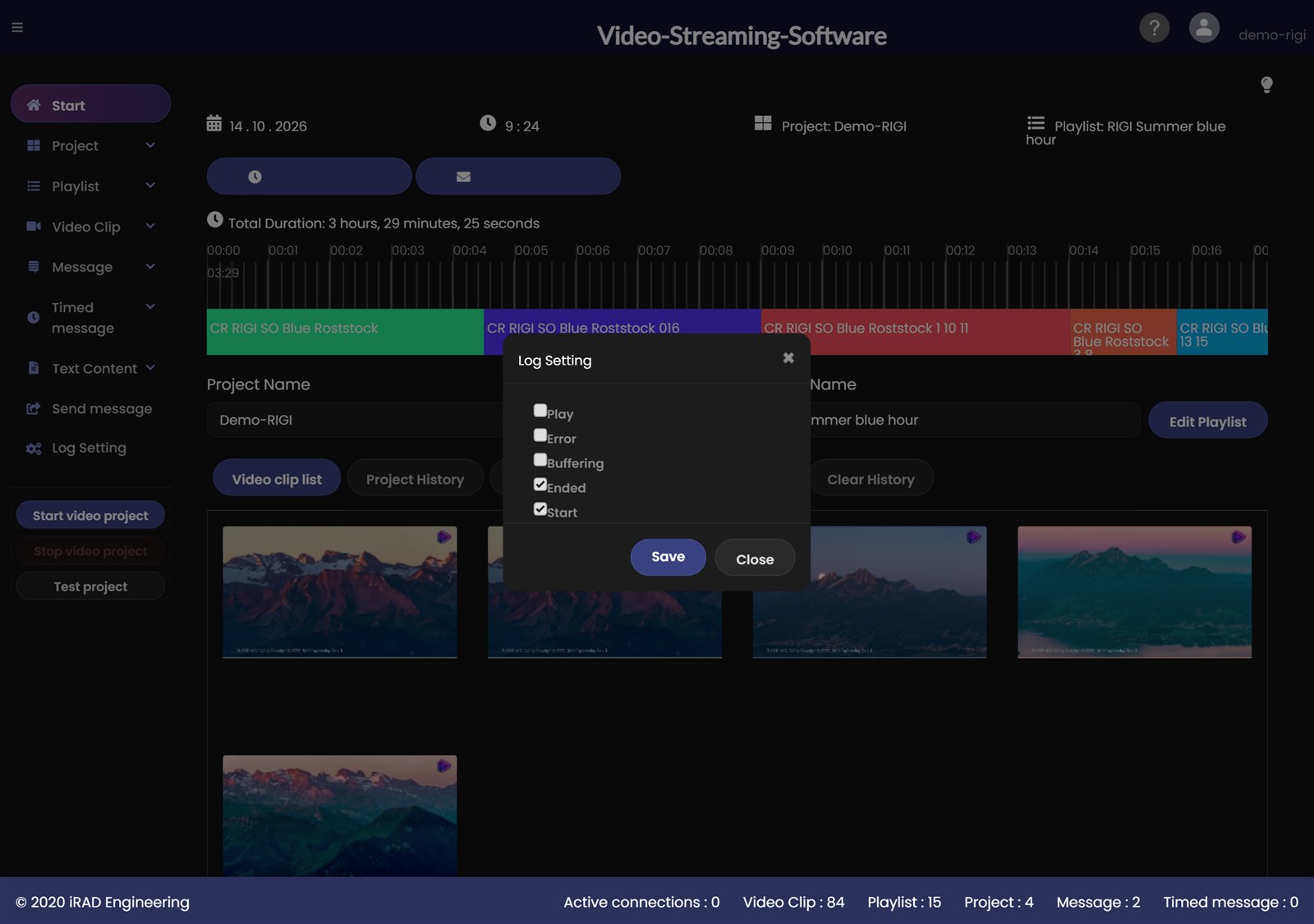

9. Log Setting – choose which events of the connected players are logged.
10. Start video project – start the selected project.
11. Stop video project – stop the selected project.
12. Test project – start the selected project locally in a separate window to test it.

Quick access on the start screen

▶ Watch as animation

At the top of the start screen you find two shortcuts: Timed message opens the timed messages, Other Messages opens the Send message page. Below them you see the name of the selected project and playlist. With Edit project and Edit playlist you open them directly. The timeline shows the clips of the running playlist with their total duration.

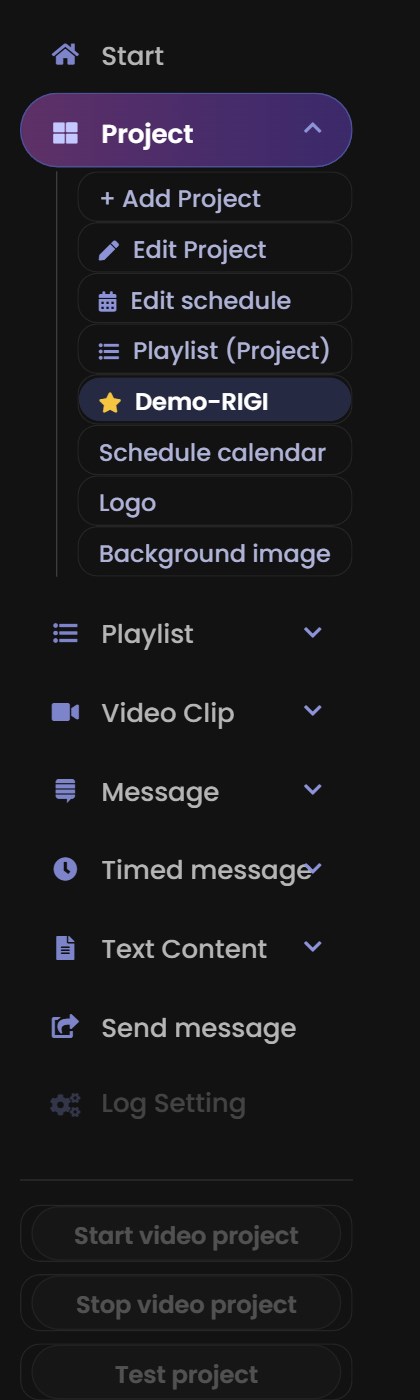

Side menu

▶ Watch as animation

The menu on the left edge leads to all areas. The groups Project, Playlist, Video Clip, Message, Timed message and Text Content have submenus: one click opens the group, another click closes it again. After signing in all groups are closed.

1. + … (for example + Project) – creates something new right away.
2. … edit (for example Edit project) – opens the item you opened last. If you have not opened one yet, the application automatically takes the first one in the list. So you do not have to select anything first.
3. The project or playlist you opened last is marked with a star in the submenu. Click it to open it.
4. Under Project you can also go straight to Edit schedule (the timeline of the project), Playlist (project), Event calendar, Logo and Background image.
5. The page you are on is highlighted. Only one group is marked at a time.

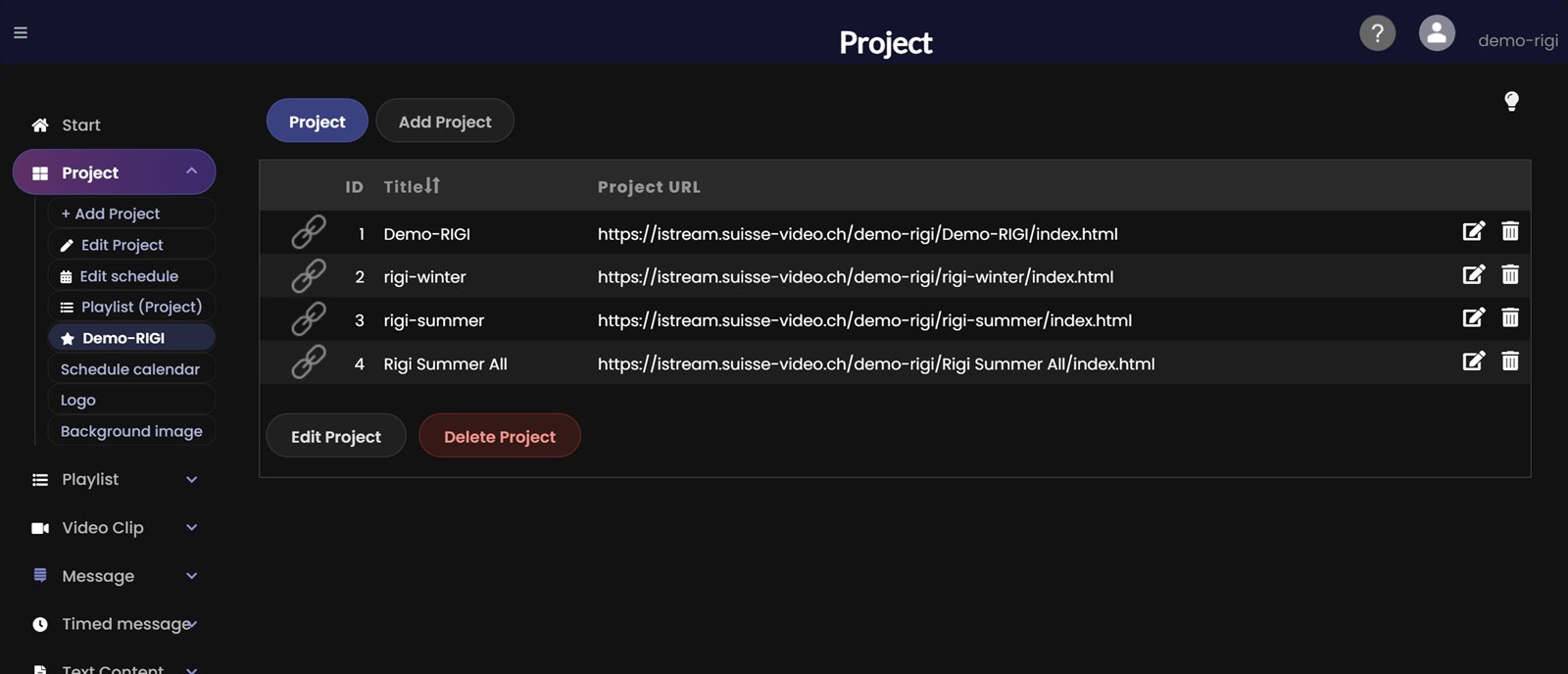

Menu Project

▶ Watch as animation

A project combines one or more playlists into one channel. Every project gets its own permanent streaming URL.

1. Open the Project page from the menu.
2. The Project tab lists all your projects with their title and project URL.
3. To create a new project, click the tab Add Project.
4. Select a project, then click Edit Project to change its settings.
5. Select a project, then click Delete Project to remove it.

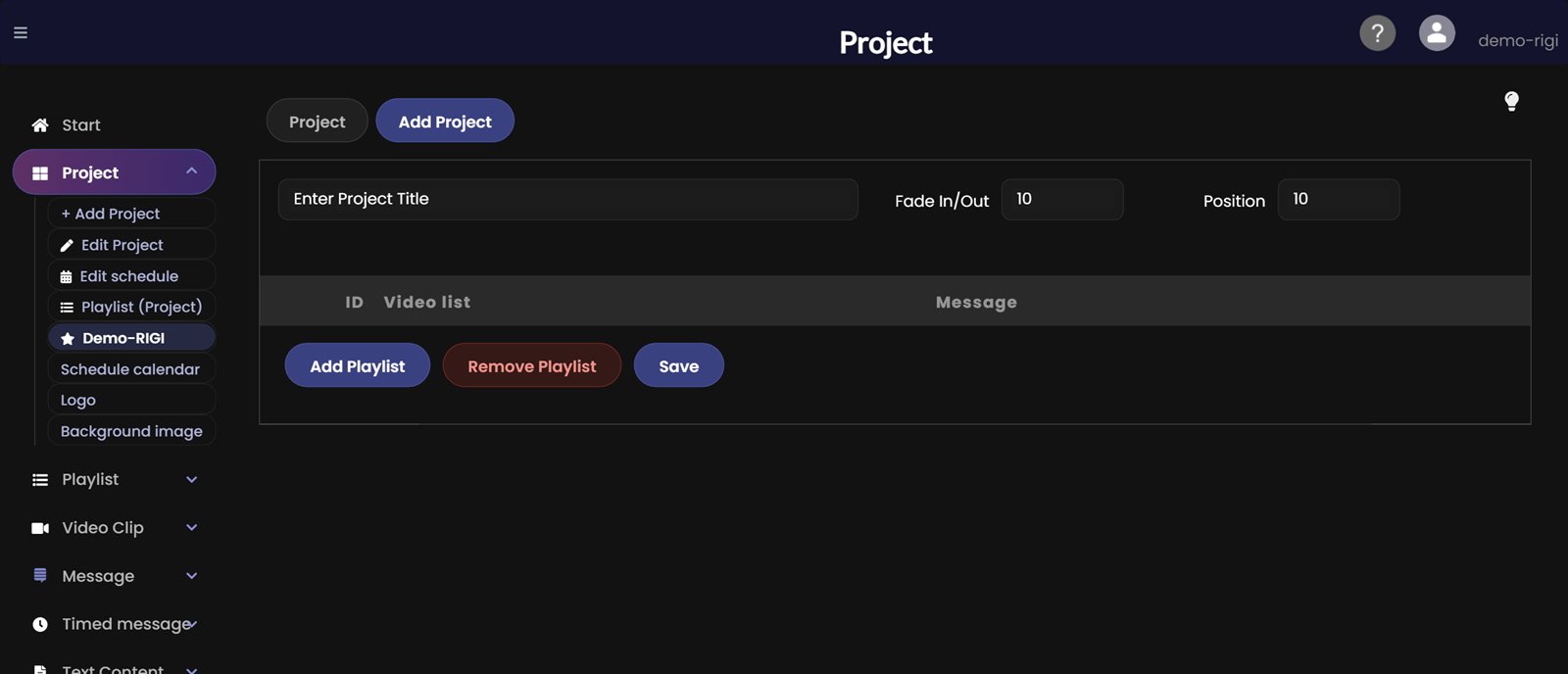

Add project

▶ Watch as animation

1. Enter the project title.
2. Fade In/Out – makes the transition between two video clips softer.
3. Position – sets the start position in your project clip.
4. Add Playlist – add one of your predefined playlists to the project.
5. Remove Playlist – remove the selected playlist from the project.
6. Save – save the project. Do not forget this step.

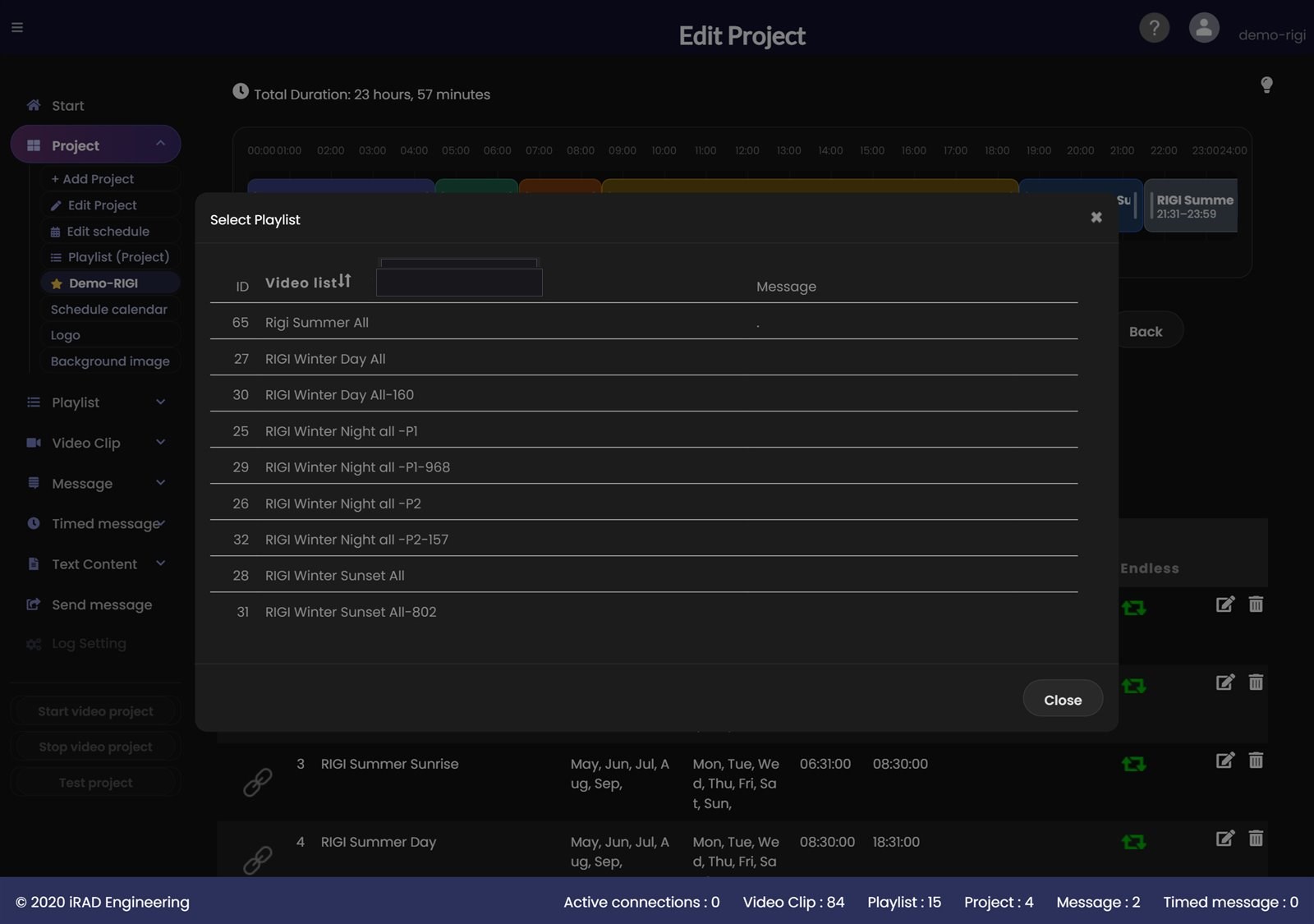

Add a playlist to your project

▶ Watch as animation

Click Add Playlist. The list of your playlists appears. One click on an entry adds it to the project, without any further question. The new row appears immediately in the table and as a block in the timeline. Repeat this for every further playlist. Then set times, weekdays and months (see Edit project).

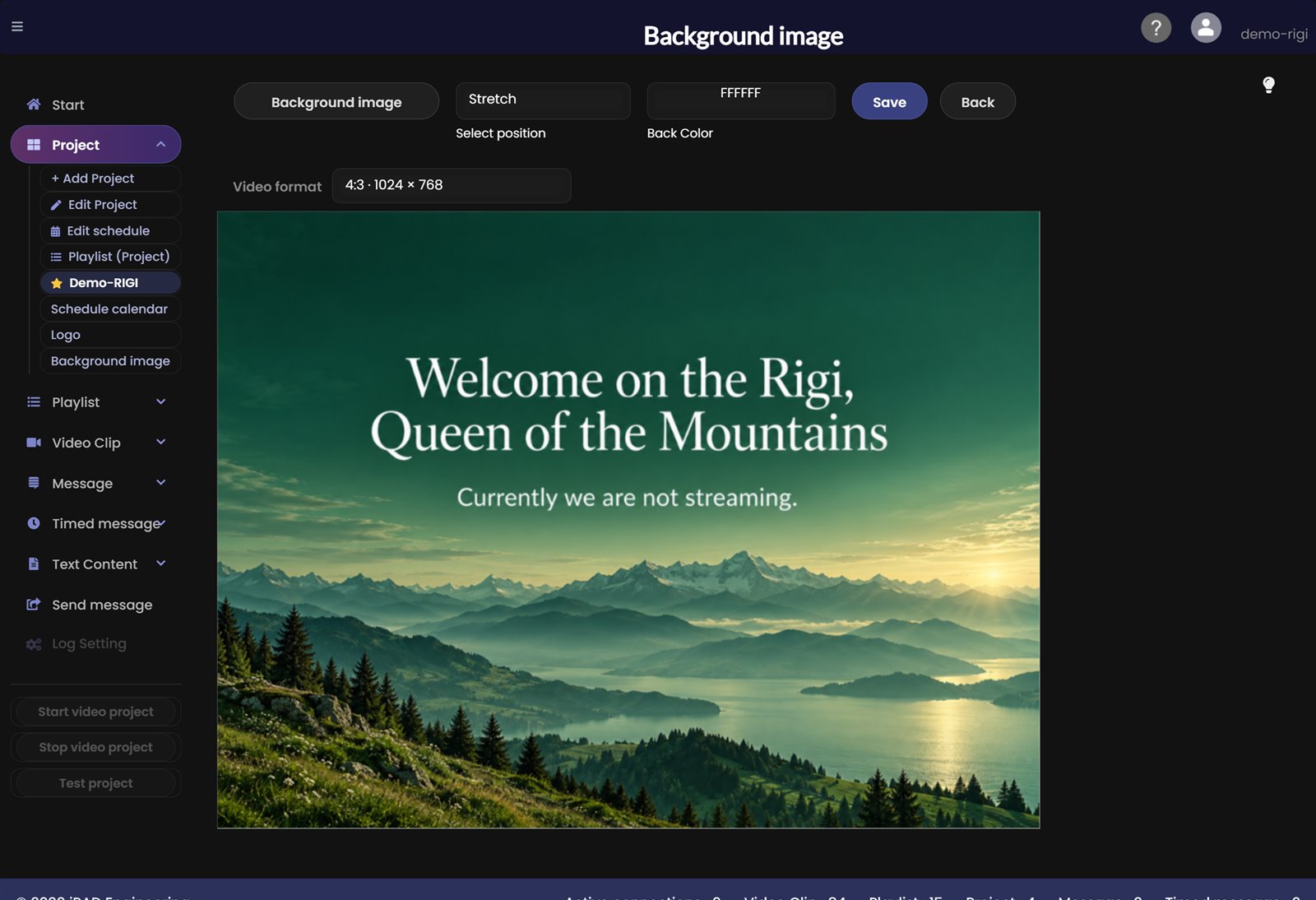

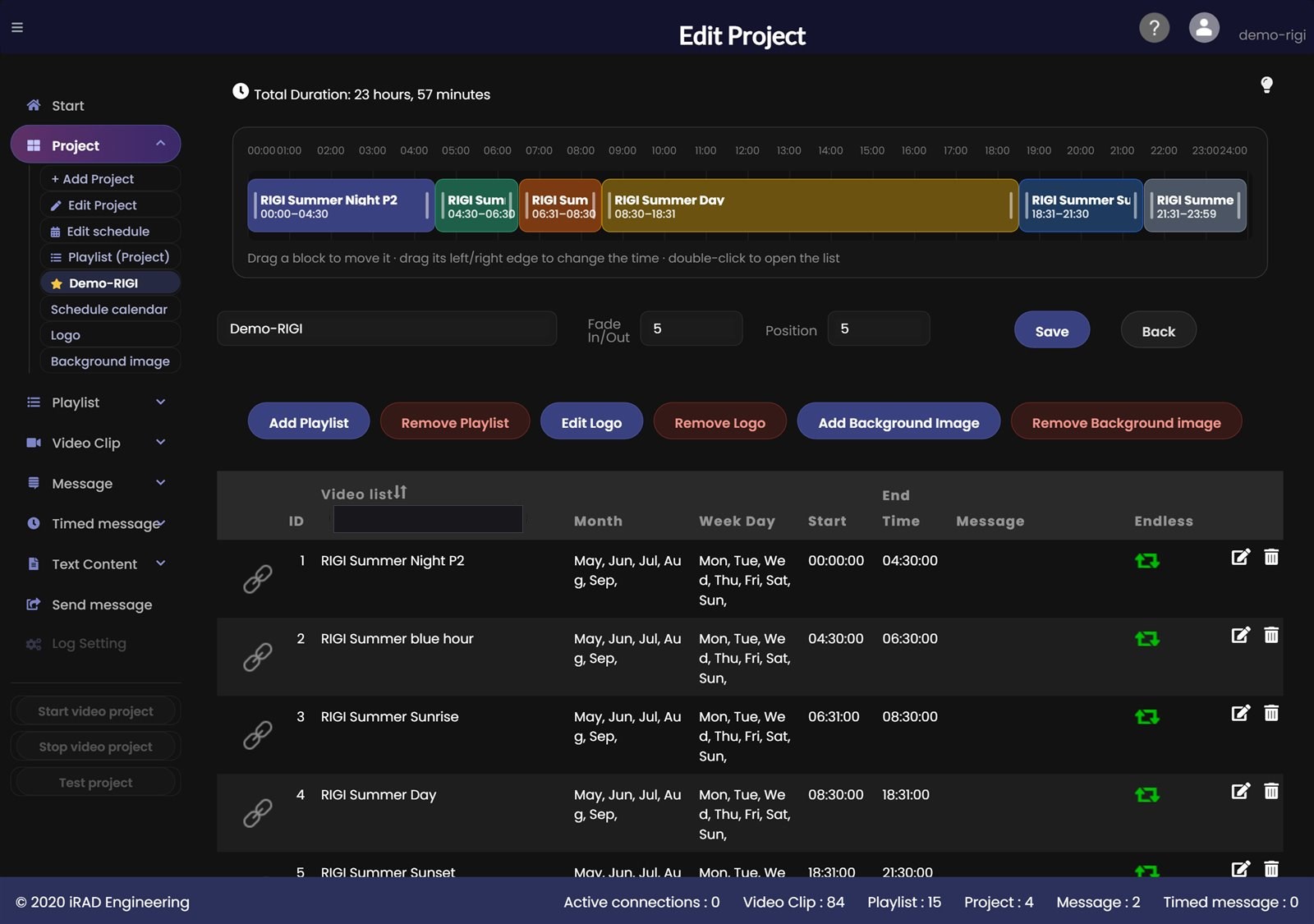

Edit project, logo and background image

▶ Watch as animation

In Edit Project you can change title, fade and position and manage the playlists of the project. This is also where you set when each playlist runs. The timeline at the top shows all playlists of the project at a glance: drag a block to move it, or drag its left or right edge to change the start or end time. Double-click opens the playlist. A block stops at its neighbour, so times never overlap. The table below lists month, weekday, start and end time per playlist and can be edited as well. You can also reach the timeline directly via Edit schedule in the side menu.

You assign menu cards (text content) in the same window. You plan when a card runs in the schedule calendar. The schedules of the playlists still apply: while a player is running it always switches to the playlist whose time window fits right now. A manual start of a different playlist therefore only lasts until the player checks the schedule again (after 10 seconds at the latest).

1. Add Playlist / Remove Playlist – add or remove playlists. A deleted playlist stays deleted.
2. Month / Week Day / Start / End Time – set when each playlist runs within the project. Double-click a row to open that playlist's schedule.
3. Edit Logo / Remove Logo – show your own logo on top of the video (see chapter Logo overlay). Edit Logo also opens the page for the first logo of a project.
4. Add Background Image / Remove Background image – set a background image for the project (see chapter Background image).
5. Save and Back – save your changes or go back to the list.

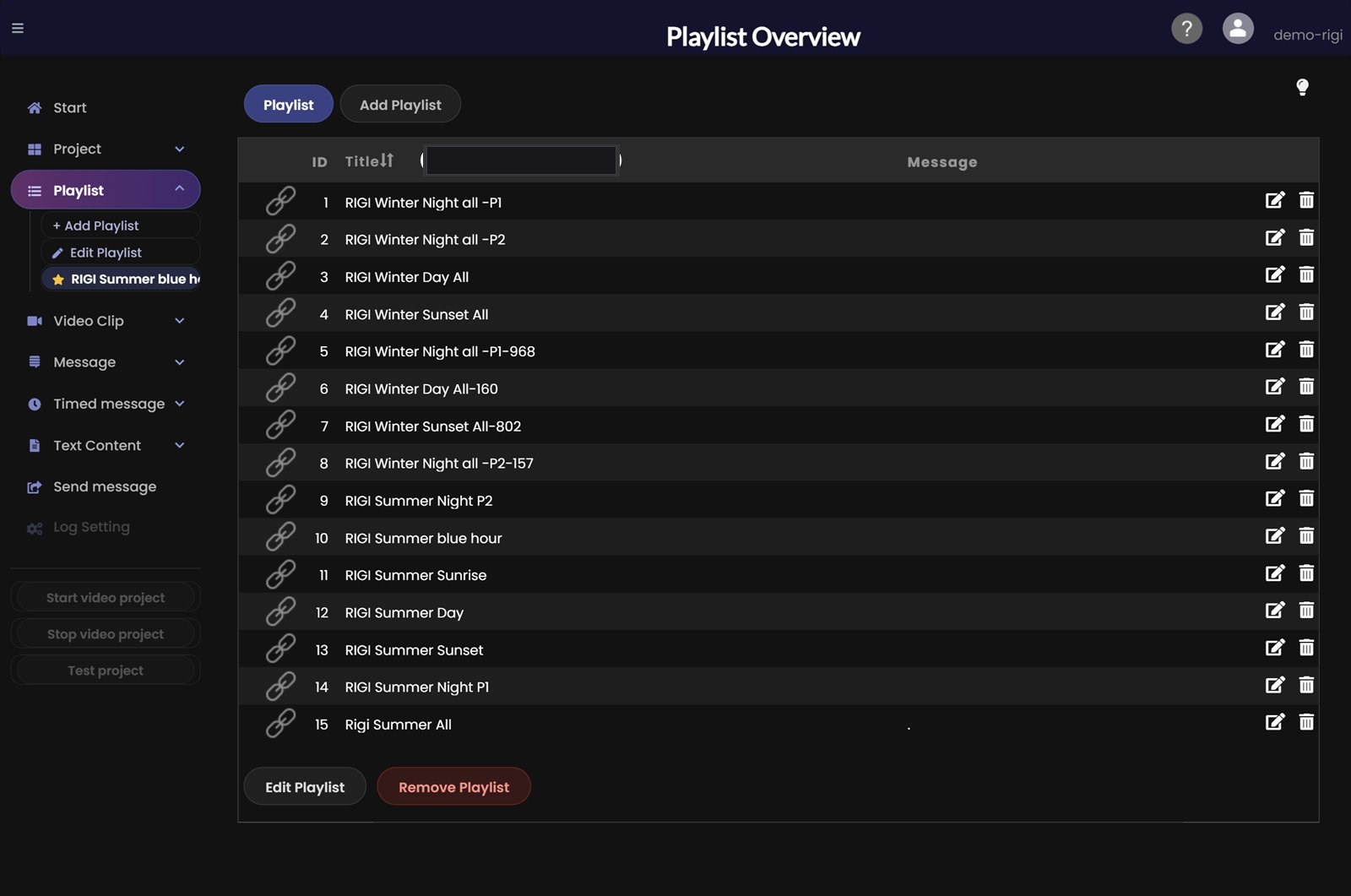

Menu Playlist

▶ Watch as animation

Here you see all playlists you have created. You can create, edit and delete playlists.

1. Open the Playlist page from the menu.
2. Click the edit icon at the end of a row to change that playlist. Alternatively select the row and click Edit Playlist below the list.
3. Click the trash icon at the end of a row to delete that playlist. Alternatively select the row and click Remove Playlist below the list.
4. To create a new playlist, click the tab Add Playlist.

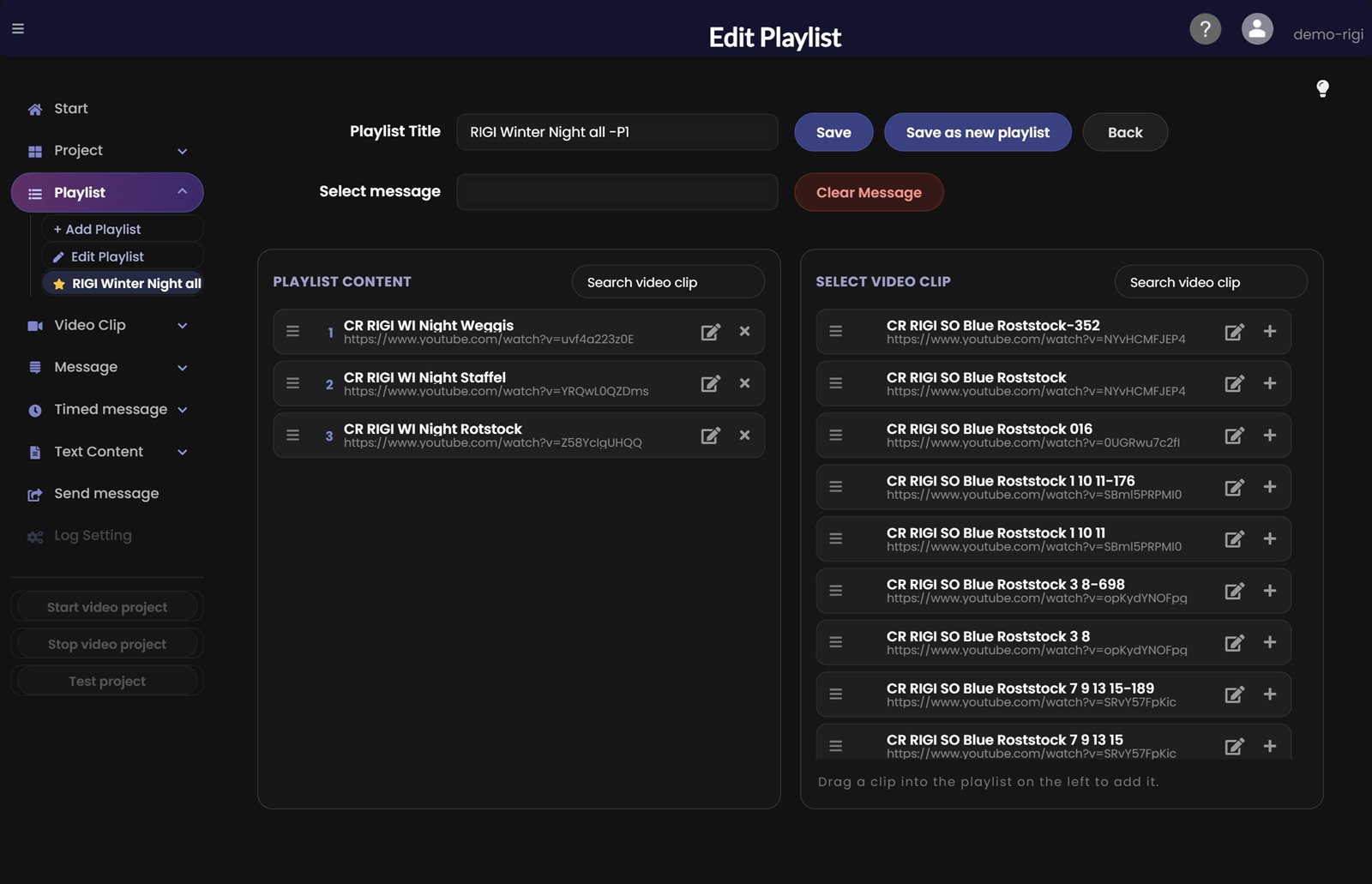

Create playlist

▶ Watch as animation

1. Playlist Title – enter the name of the playlist.
2. Select message – optionally assign a scrolling message to the playlist. Clear Message removes it again.
3. Playlist Content (left) – the video clips currently contained in this playlist.
4. Select Video Clip (right) – your available video clips. Click + to add a clip to the playlist, or × to remove it again.
5. Save – save your changes. Save as new playlist saves a copy under a new title.

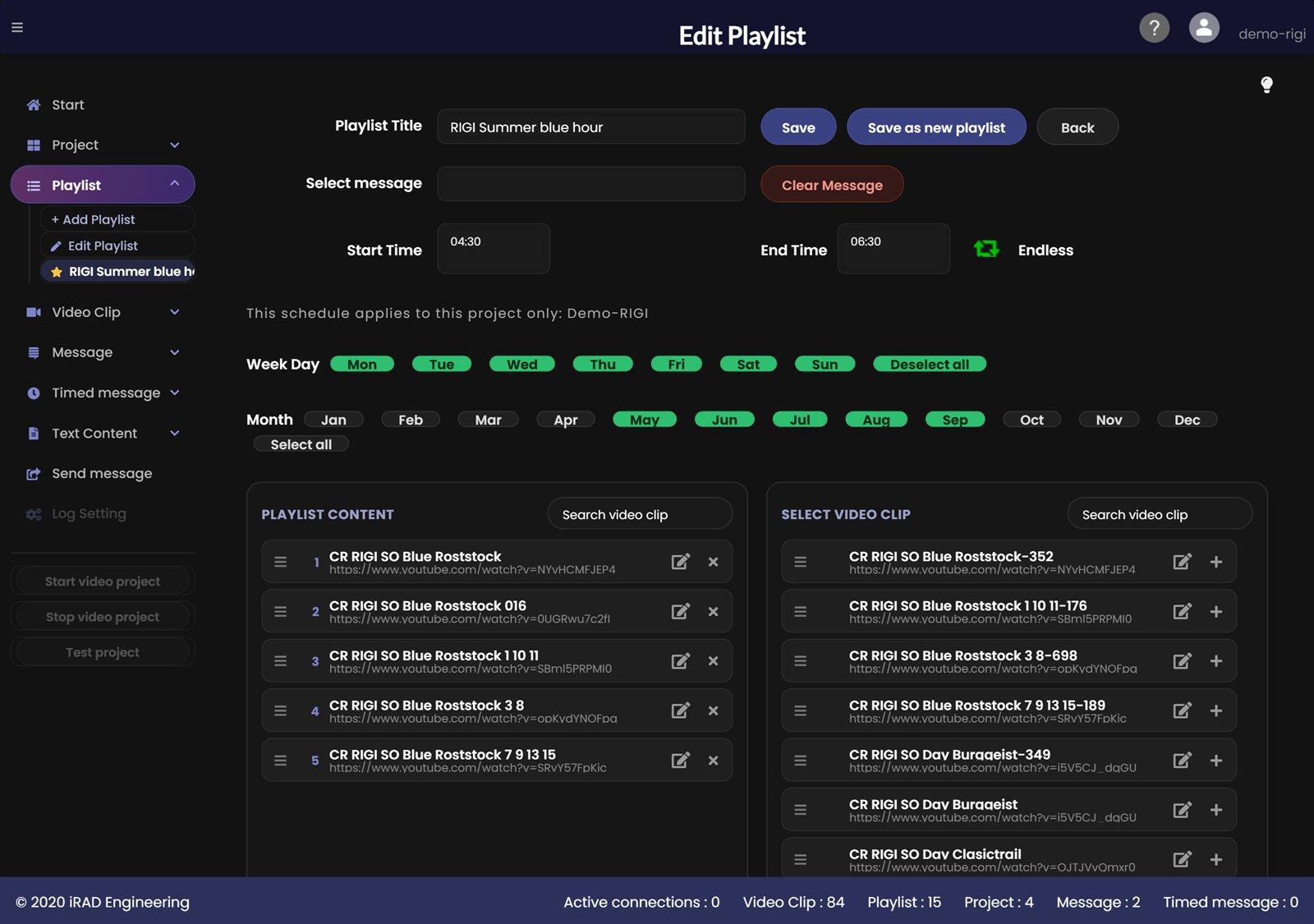

Example: scheduling in a project

▶ Watch as animation

You set when a playlist runs in the project. A double-click on a block or a table row opens the playlist with its schedule: start time, end time (or endless), weekdays and months. The note "This schedule applies to this project only" shows that these times only apply in the project named: the same playlist can have different times in another project. Weekdays and months marked green are active.

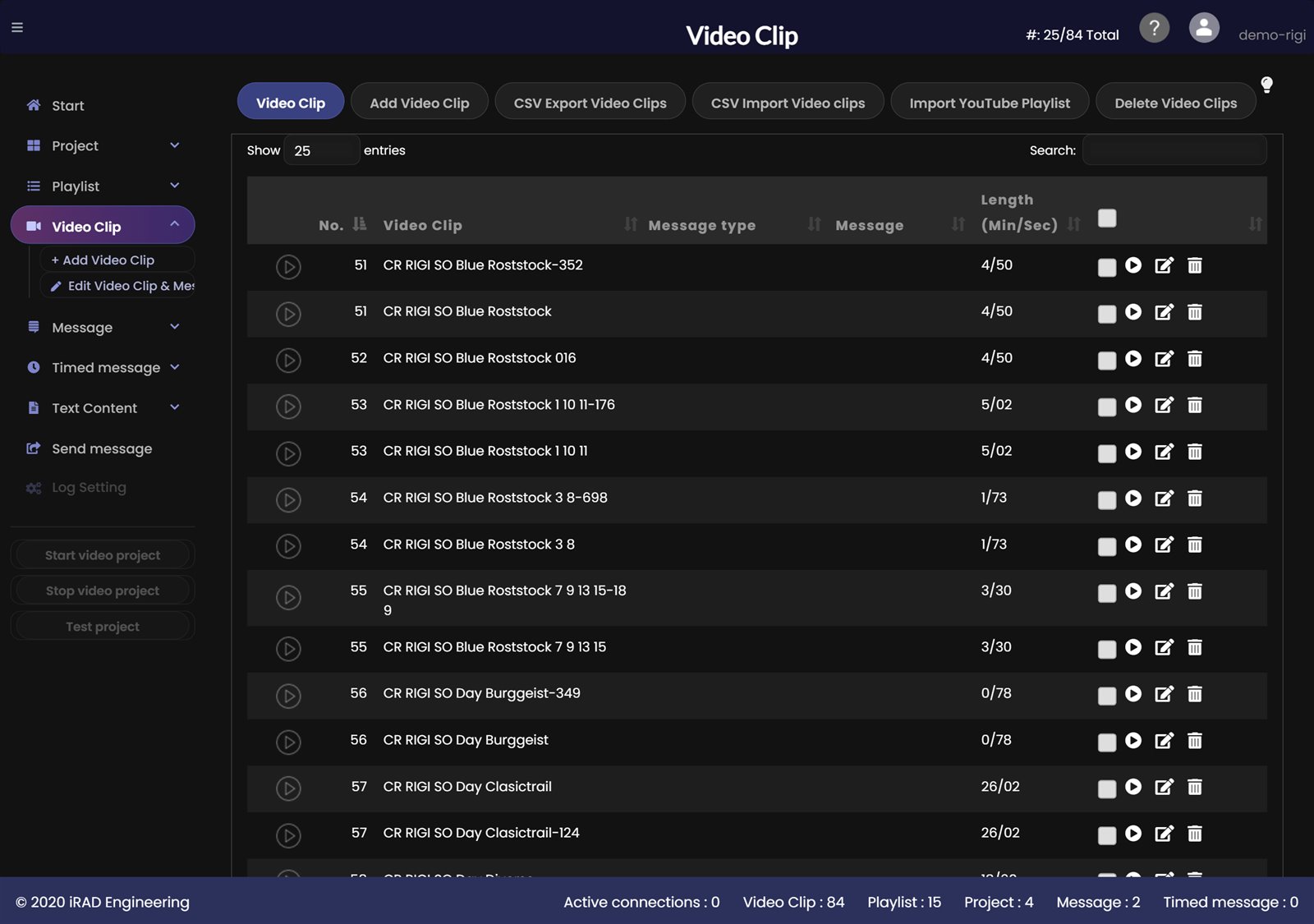

Menu Video Clip

▶ Watch as animation

The video clip list is the source of all playlists. Clips come from YouTube or Vimeo links.

1. Open the Video Clip page from the menu.
2. Video Clip tab – shows your imported video clip links.
3. Add Video Clip – add a single video clip.
4. CSV Export Video Clips – export your clip list to a CSV file. Use it as a backup or to change clip names in a spreadsheet.
5. CSV Import Video clips – import the previously exported CSV file.
6. Import YouTube Playlist – import a YouTube playlist.
7. Delete Video Clips – remove all clips from your list.
8. Sort the list or filter it by clip name.
9. Message type and Message – show the scrolling message defined for a clip, if any.
10. Tick the box in the header to select all clips.
11. Per clip you can preview, edit and delete the selected video clip.

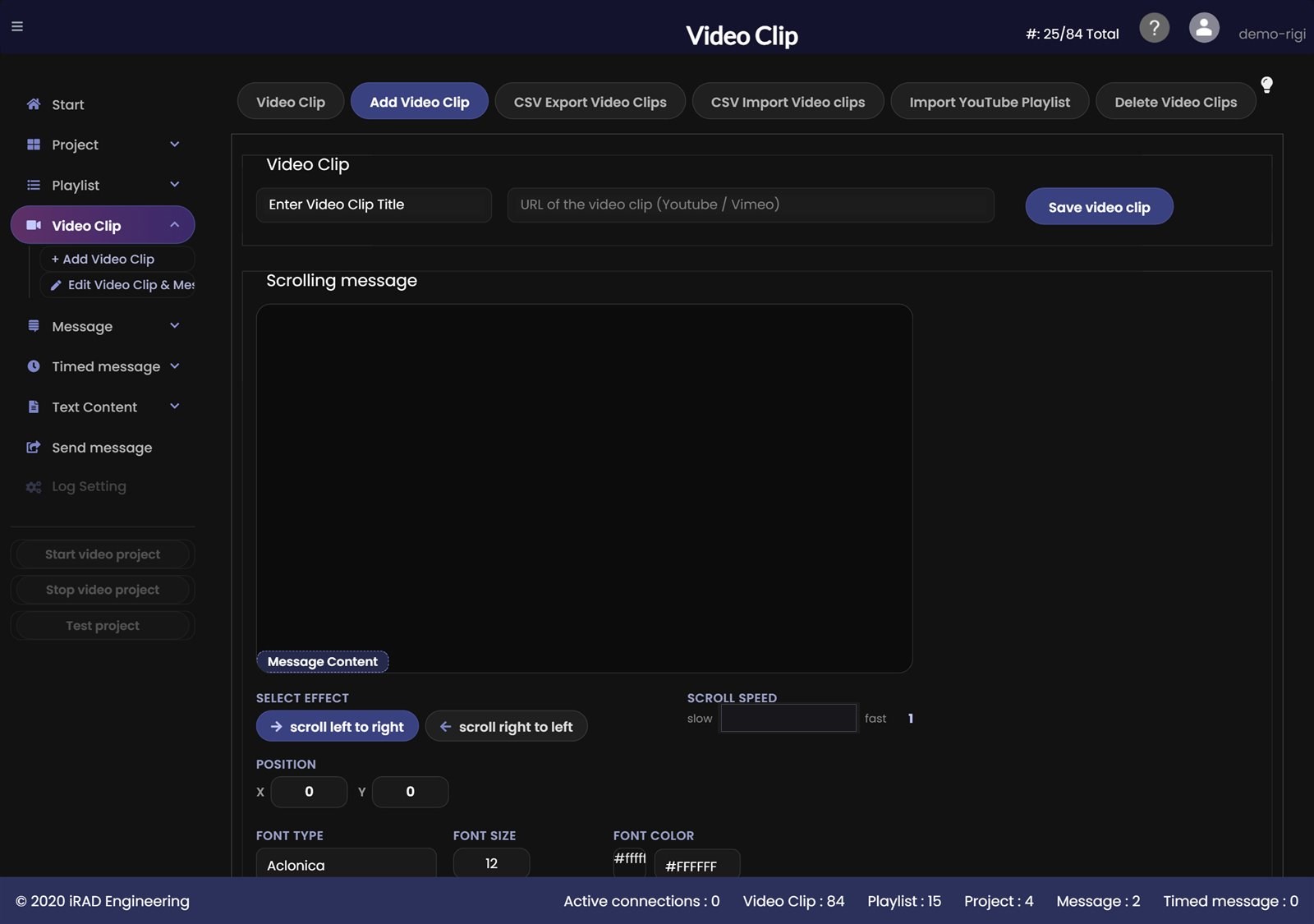

Add video clip

▶ Watch as animation

1. Enter the title of the clip and its URL (YouTube or Vimeo).
2. Save video clip – save the clip.
3. Optionally define a scrolling message for this clip only: effect, speed, position, font, size, colors and text.
4. Preview the clip and the message.
5. Save video message – save the message of the clip.

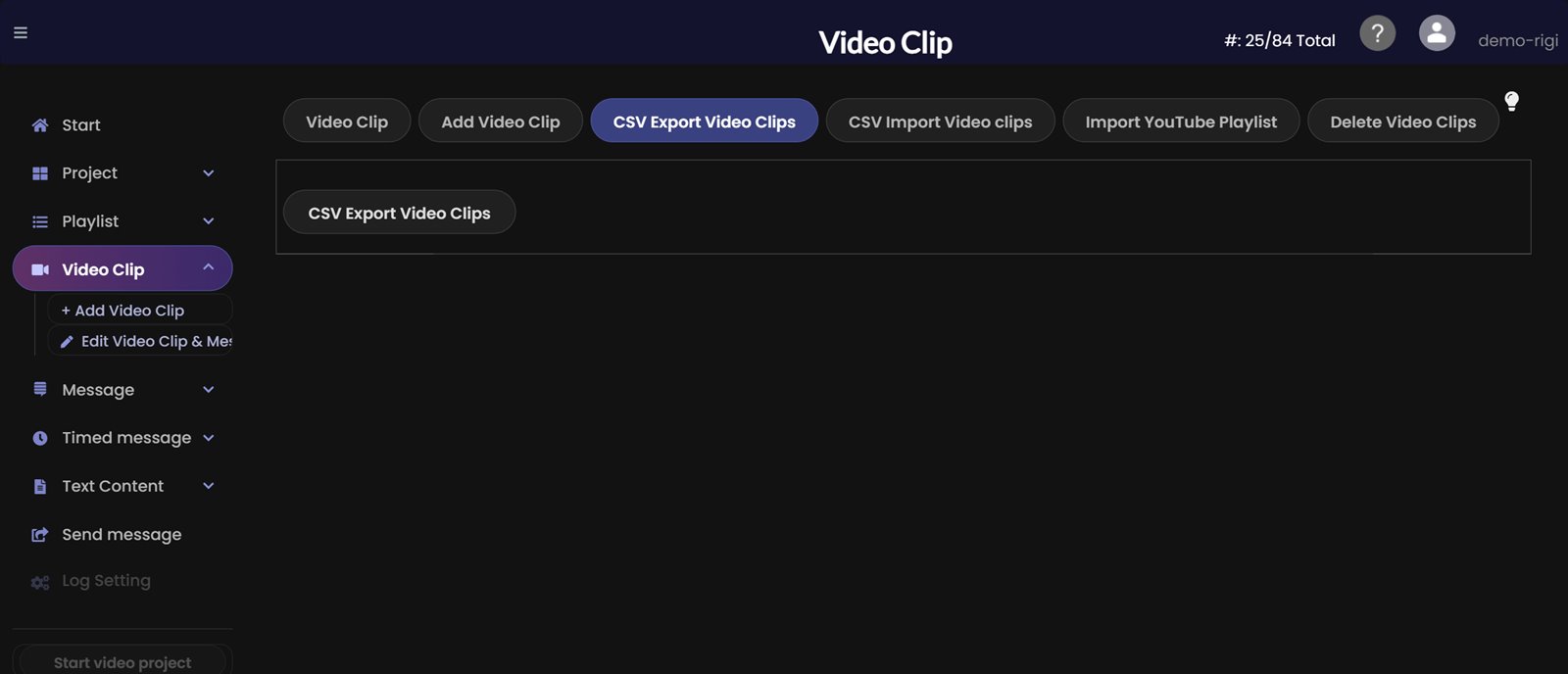

CSV export of video clips

▶ Watch as animation

To export your video clips, click CSV Export Video Clips.

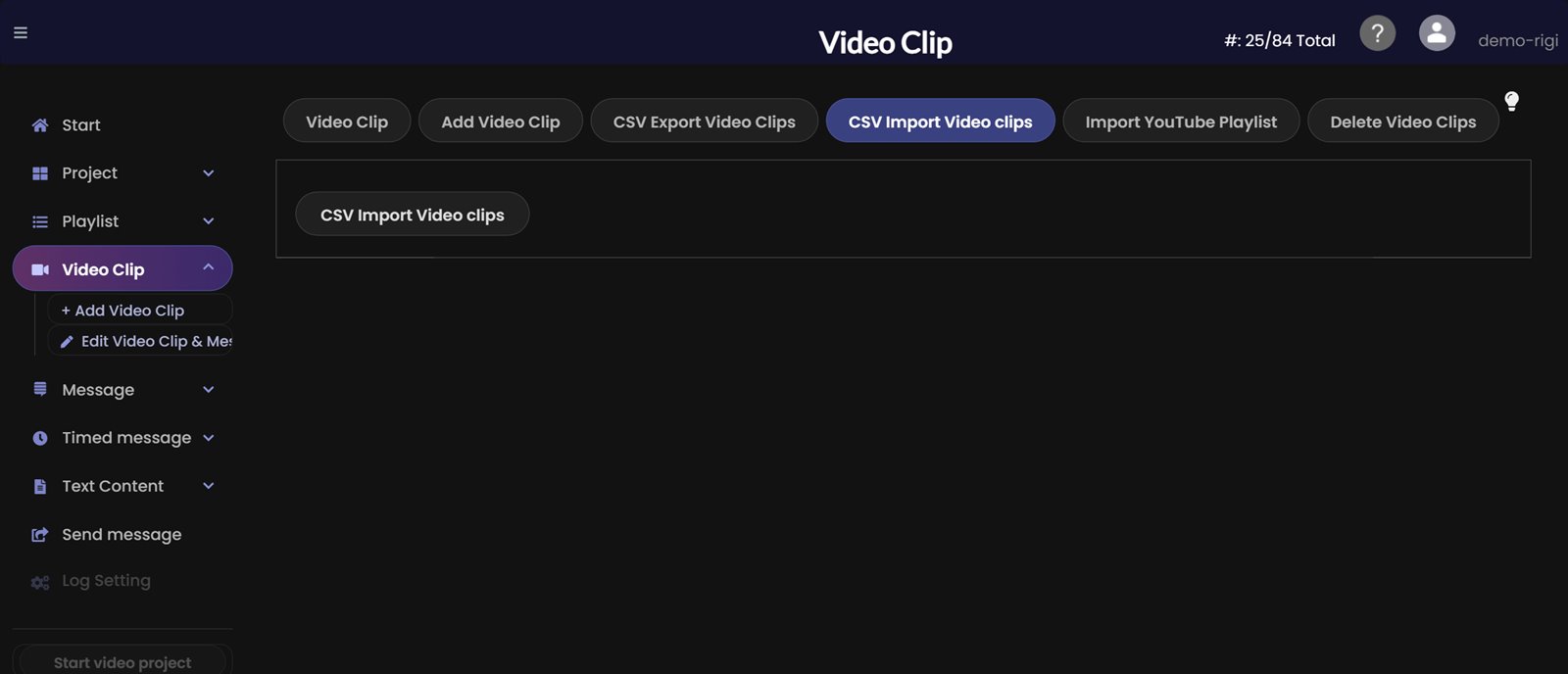

CSV import of video clips

▶ Watch as animation

To import video clips, click CSV Import Video clips and choose the CSV file.

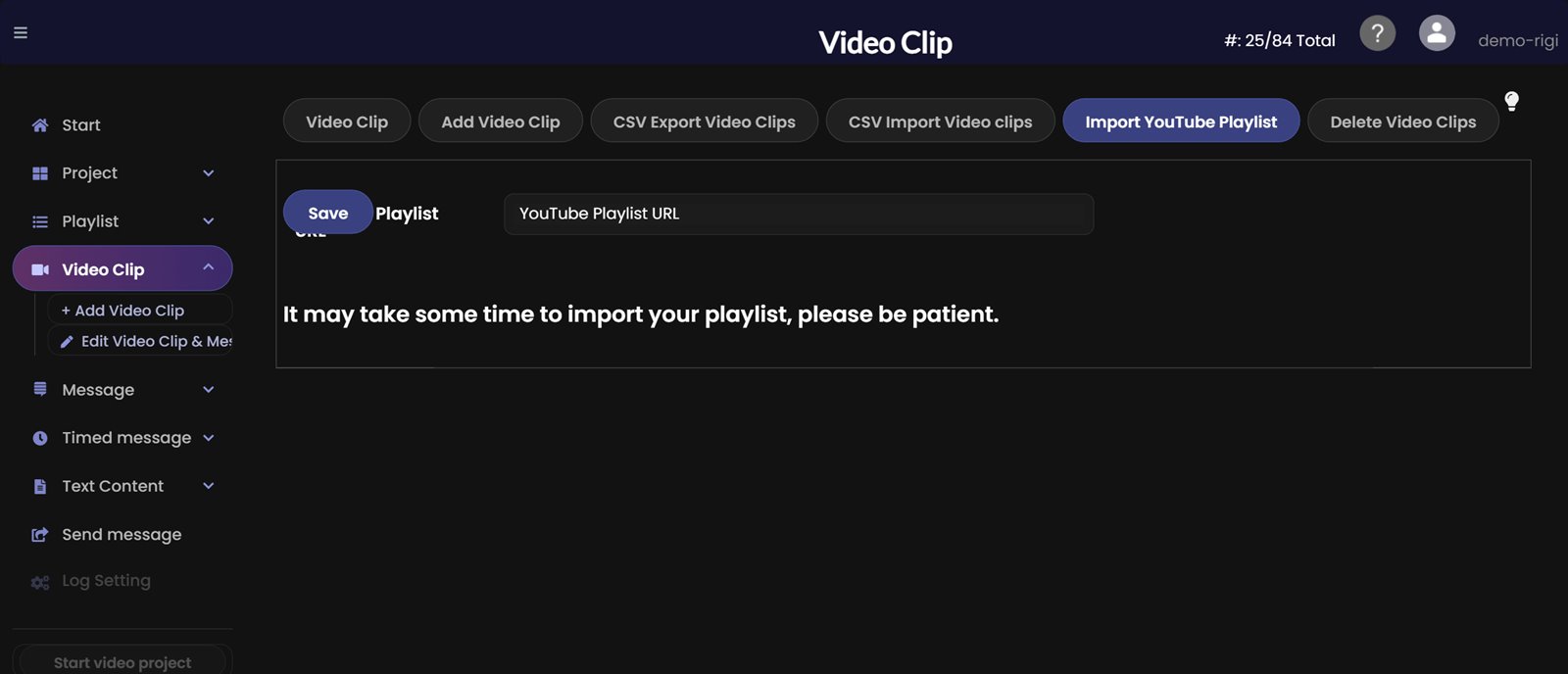

Import a YouTube playlist

▶ Watch as animation

Click Import YouTube Playlist, enter the address of the YouTube playlist and click Save. Playlists are imported one by one. This may take some time, please be patient.

Delete video clips

To delete video clips, tick the clips and use Delete Video Clips. A clip that is still used in a playlist must be removed from that playlist first.

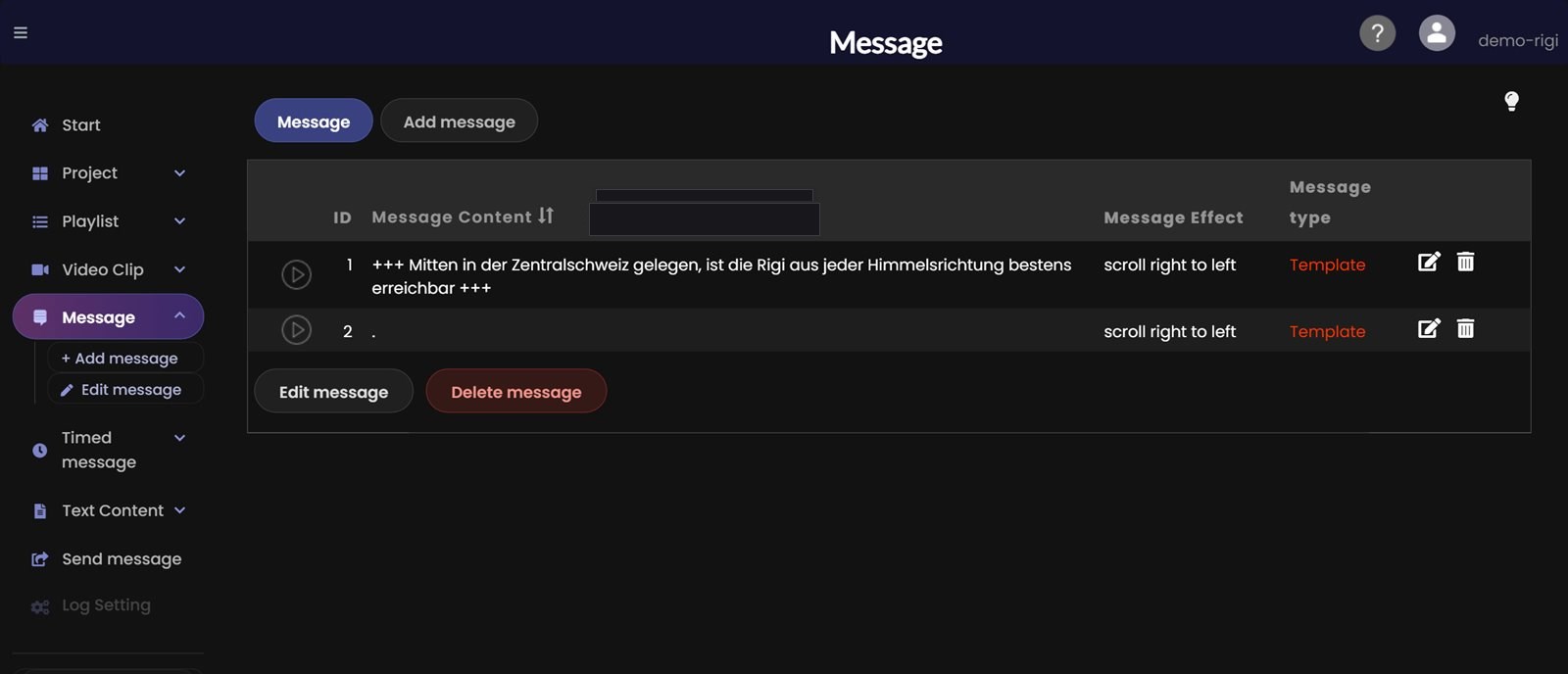

Menu Message

▶ Watch as animation

Messages are scrolling texts. Saved as a template they can be reused for playlists and live messages.

1. The Message tab shows your message list.
2. Click a line to edit the existing message.
3. Click the tab Add message to create a new message.

Edit message

▶ Watch as animation

1. Select Effect – choose the scroll direction: left to right or right to left.
2. Scroll Speed – set the speed of the text.
3. Player X-Position – adjust the horizontal position (normally not necessary).
4. Player Y-Position – adjust the vertical position (normally not necessary).
5. Font Type – choose the font.
6. Font Size – choose the font size.
7. Font Color – choose the text color.
8. Back Color – choose the background color of the message.
9. Enter your message text here (maximum 256 characters).
10. Save as template and Template Name – save the message as a template. You can use it later for your live messages.

Add a timed message

▶ Watch as animation

A timed message is shown in a project from a start time to an end time. Enter the text and set the parameters as described for messages, then set the timing:

1. Select Project – choose the project in which the message is shown.
2. Disable – switch off the message that is currently active.
3. Start Time and End Time – the period in which the message is shown.
4. Show and Hide – when you use an alternating message, set in seconds how long it is shown and how long it is hidden.
5. Save as template and Template Name – save the message as a template for later campaigns.
6. Save timed message – save. Back returns to the list.

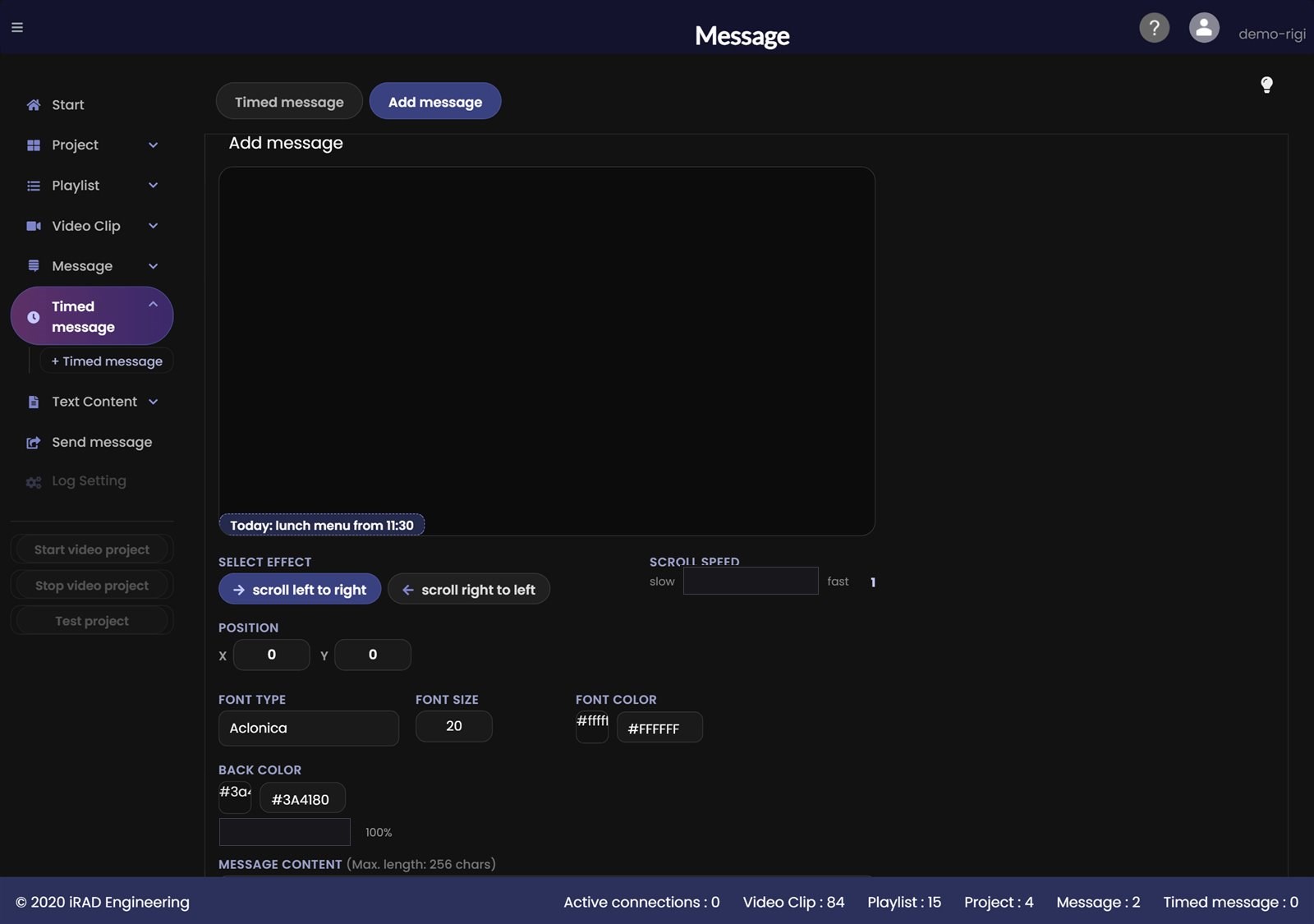

Timed message example

▶ Watch as animation

The example shows a timed message with all parameters filled in.

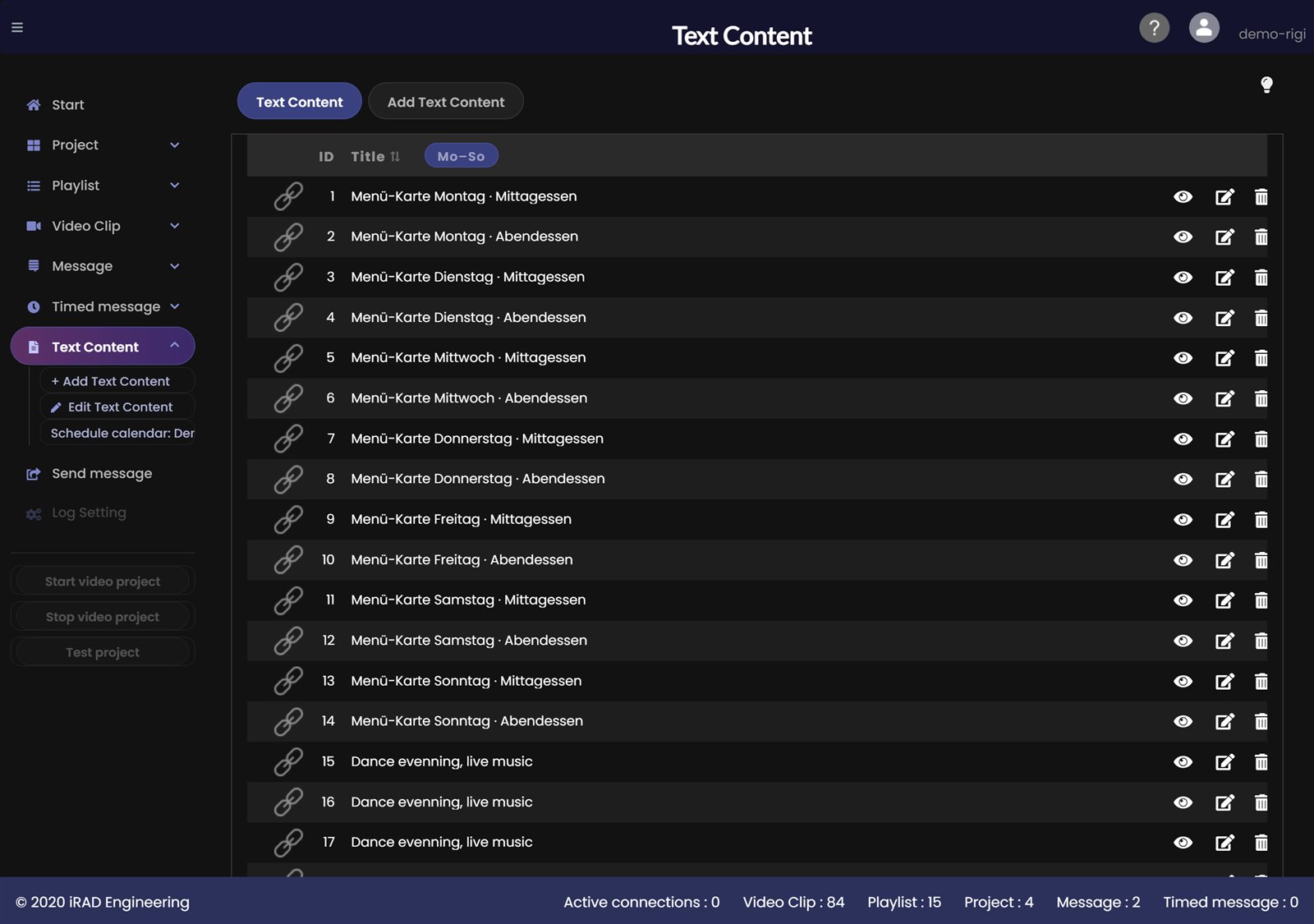

Text content menu

▶ Watch as animation

With Text content you show styled text instead of the video, for example a daily menu card, a conference notice or an announcement. Each card has a title, the text, a background and a scroll setting. When a card is shown is set in the schedule calendar. A card can have any number of events.

1. Open the Text content page from the menu.
2. The Text content tab lists all your cards. Use the Add text content tab to create a new card.
3. Click Title to sort the list from A to Z and back from Z to A. Mon-Sun sorts by weekday, lunch before dinner.
4. The eye icon opens a preview of the card in its own window (see Previewing a card). The pencil icon opens the card for editing. The trash icon deletes the card, also from all projects and with all its events.

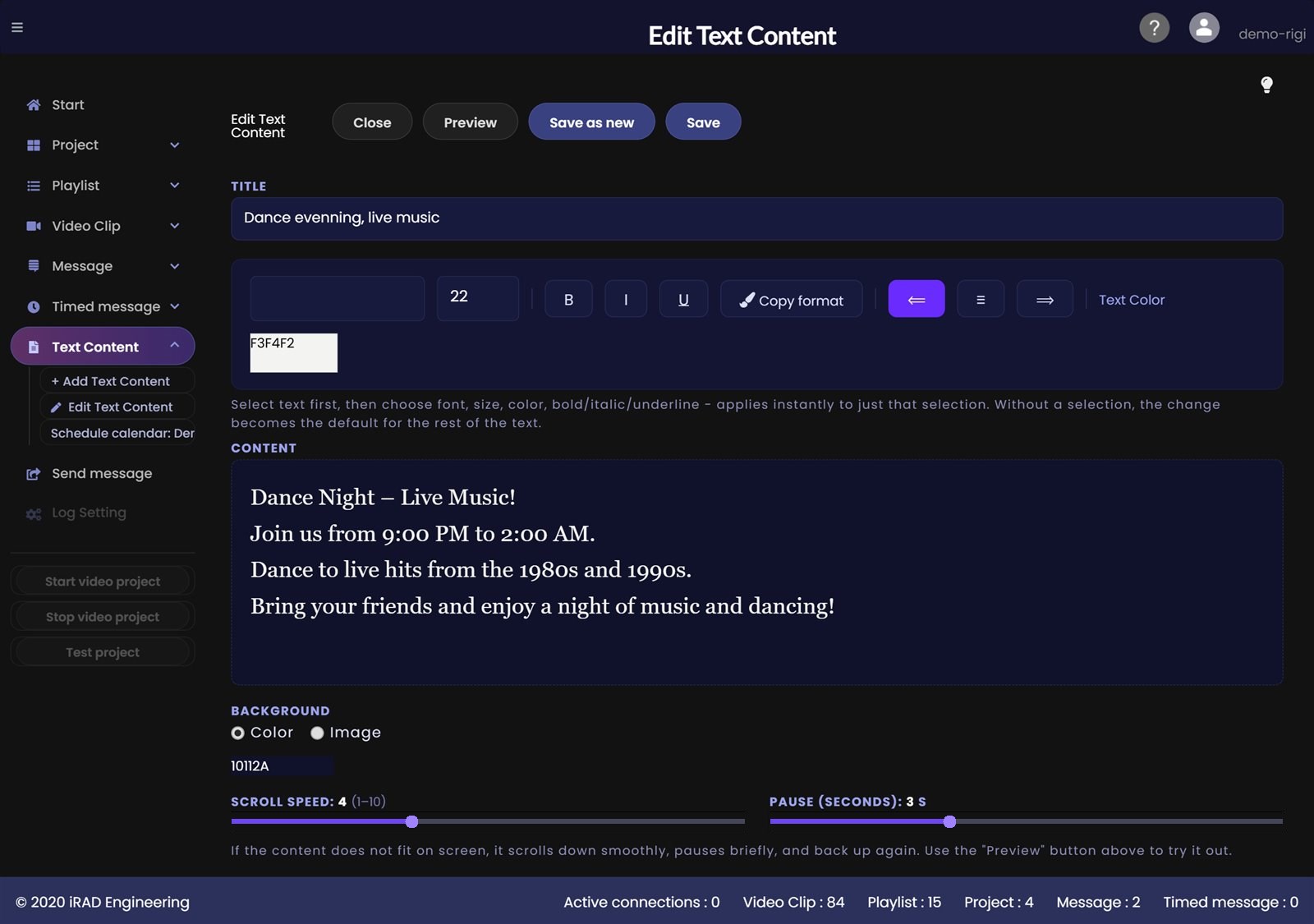

Editing text content

▶ Watch as animation

1. Title - the name of the card. It appears in the lists, in the project and in the calendar.
2. Toolbar: font, size, bold, italic, underline, alignment and text colour. Select the text first. The change then applies only to the selection. Without a selection it becomes the default for the remaining unformatted text. The toolbar always shows the properties of the selection.
3. Copy format - select a spot with the look you want and click the button. It changes to Paste format. Select the target spot and click again. The cross cancels.
4. Content - type the text directly into the field or paste it from Word or another program, including tables. A new card starts empty, the grey hint is not saved. The field shows the card the way it appears on the screen.
5. Preview - shows the card in a separate window at a size of your choice (320 to 1280 pixels), including the scroll effect. This shows how the card looks in an iFrame on your website.
6. Save saves and stays on the page. Save as new creates a copy (enter a different title first). Close leaves the page. If the editor was opened from the schedule calendar, Close returns you there.

Background and scrolling

▶ Watch as animation

1. Background - choose a colour or an image. With Upload image you upload your own background image.
2. Scroll speed - how fast the text runs if it does not fit on the screen. The value (1 to 10) is shown in the label.
3. Pause (seconds) - how long the text stays at the end before scrolling back. The value in seconds (0 to 15) is shown in the label and changes while you drag.

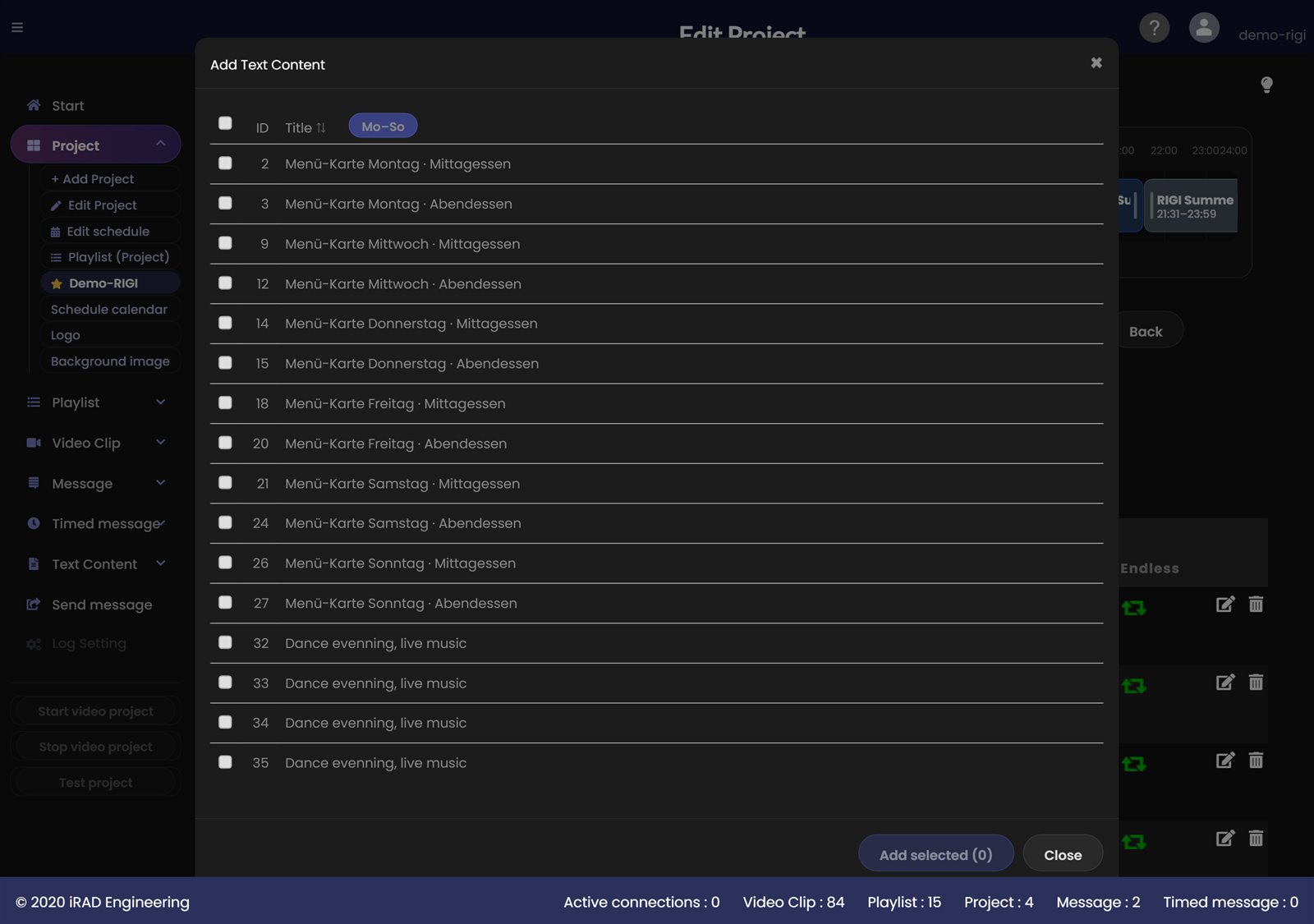

Choosing cards in the project

▶ Watch as animation

Open Edit project. Below the playlists click Add text content. The list of your cards that are not yet in the project appears. Tick the cards you want, or the box at the top for all, and click Add selected.

You can also pick or create a card directly in the event dialog of the calendar. It is then assigned to the project automatically when you save.

Cards in the project

▶ Watch as animation

The added cards are listed in the table below the playlists. The assignment is saved immediately. A newly added card initially has no event and therefore does not run yet. You schedule it in the schedule calendar.

1. Schedule calendar (button above the table) - opens the calendar of the project (see Schedule calendar).
2. Events column - shows the number and the first two events per card, for example 1 · Mon · 11:00-14:00 or 1 · 12.11.2026 · 14:00-17:00. If it says No events yet, the card does not run.
3. Calendar icon - opens the schedule calendar. Eye icon - preview of the card. Pencil icon - opens the card for editing (text, font, background). Trash icon or Delete text content - removes the card with its events from the project. The card itself is kept.
4. Use Title and Mon-Sun in the table header to sort the rows.

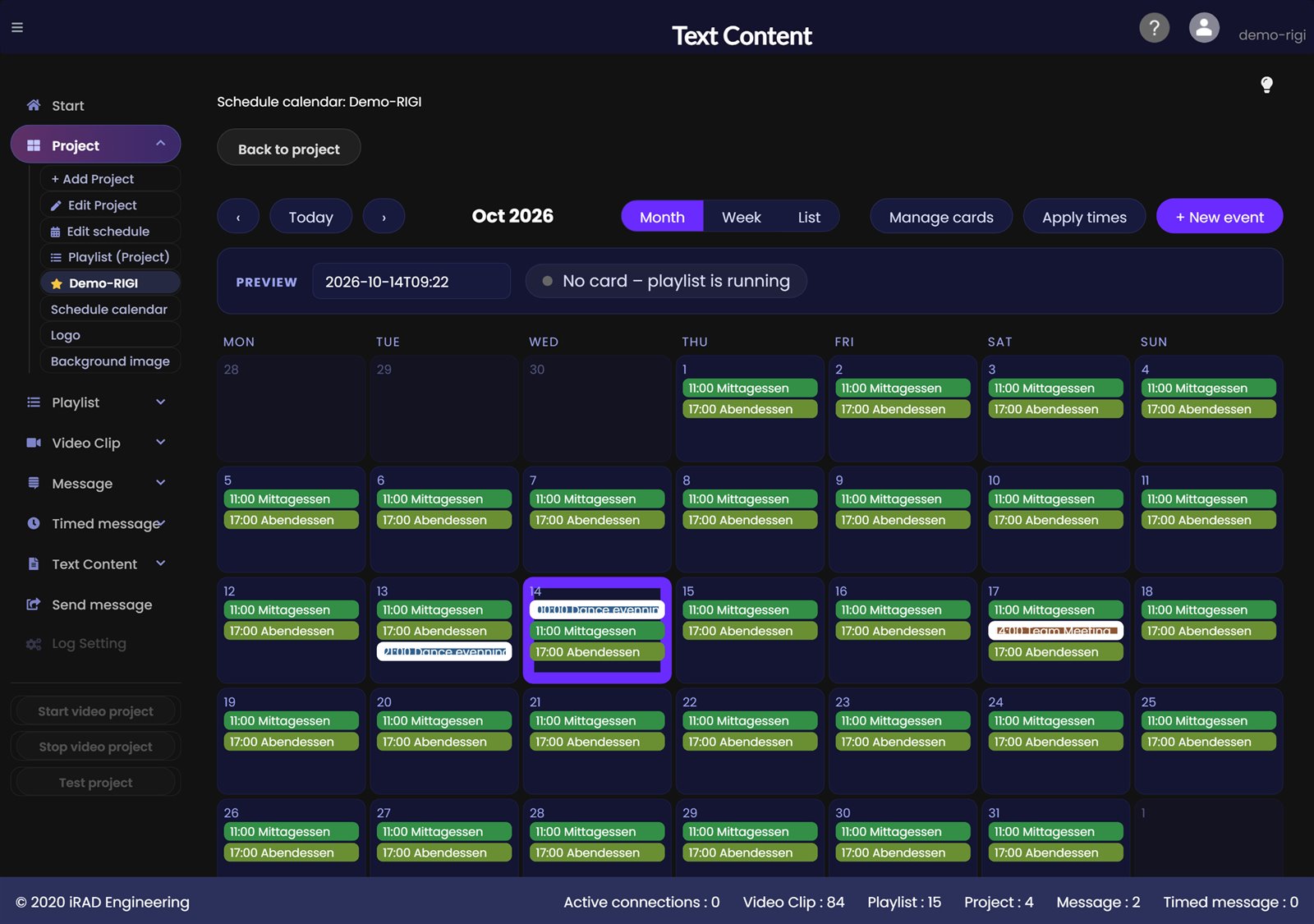

Schedule calendar

▶ Watch as animation

The schedule calendar shows when which card runs in the project. Open it with Schedule calendar on the Edit project page or with the calendar icon of a card. An event says when a card is shown. A card can have any number of events, for example lunch and dinner every day plus a conference on 12 November from 14:00 to 17:00. This also lets you plan months ahead.

1. Month / Week / List - three views. Month shows every day with its entries, Week shows the times as blocks, List shows all events sorted by card.
2. Use the arrows ‹ and › to move through months or weeks, Today jumps to the current day. This lets you see events that only run months from now.
3. Each card has its own colour. Entries show the time and a short name. Weekday and "Menü-Karte" in the title are left out so that, for example, "Lunch" stays readable. An entry with a white bar on its left edge is a single-date event.
4. The entry that is running right now pulses green and is updated continuously, so you see at a glance what is active.
5. Click an entry to edit the event. Click a day to create a new event for that date. In the week view drag with the mouse to select a time range, for example 14:30 to 16:30, and the dialog opens with date and time filled in.
6. + New event creates an event. Manage cards opens the list of your cards. Apply times sets the lunch and dinner times in one go (see below).
7. Preview - choose a date and time. The field next to it shows which card would run then. It lights up green when a card runs and shows "No card, the playlist is running" when nothing matches. Ideal for checking months ahead.

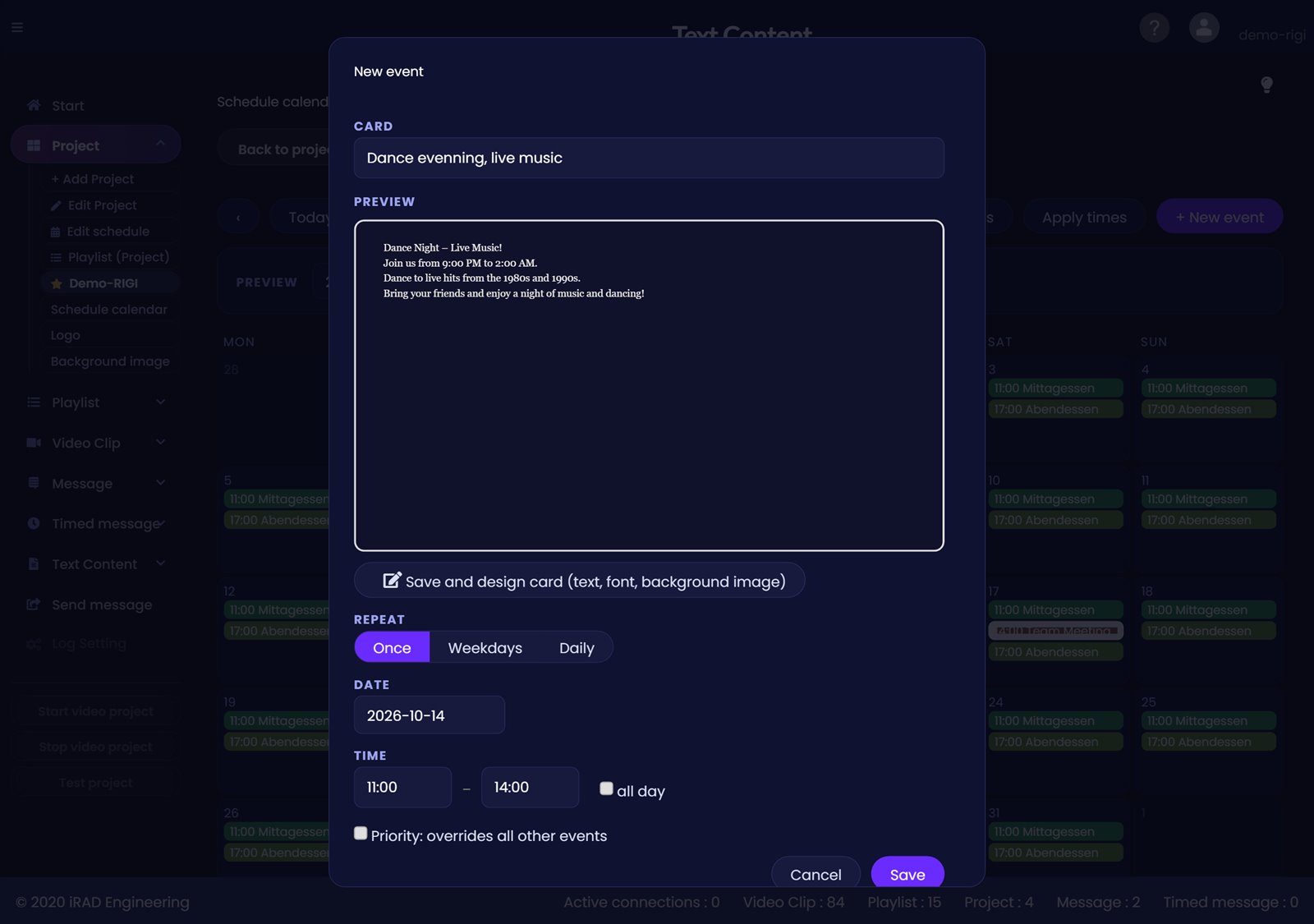

Creating and editing an event

▶ Watch as animation

The Event dialog opens with + New event, a click on a day or a click on an entry.

1. Card - choose the card. Cards that are not yet in the project carry the note "not in project yet" and are assigned automatically when you save. With + Create new card you enter the title and text of a new card directly, for example "Team Meeting". You adjust the layout later in the editor.
2. Preview below the card - shows the card with font, colours and background image the way it appears on the screen. For a new card you see your input as you type.
3. Save and design card - saves the event and opens the editor with text formatting and background image. Close in the editor returns to the calendar.
4. Repeat - Once (a specific date, for example a conference), Weekdays (every week on the chosen days) or Daily.
5. Date for Once. For Weekdays and Daily you can set Valid from and Valid until, for example for a Christmas menu from 1 to 24 December. Only in these months limits the event to certain months, for example a winter menu from November to February. Empty means all months.
6. Time from / to - the time window. With all day the card runs the whole day. The start must be before the end. 00:00 (midnight) is allowed as the end. To run an event past midnight, create two events: until 00:00 and from 00:00.
7. Priority: overrides all other events - the event wins against every other one, even a more specific one. Such events are marked with a ★ in the calendar.
8. Save, Duplicate (creates a copy of the event, handy for similar events), Delete and Cancel. If an event with the same details already exists, the application does not create it twice; a note appears.

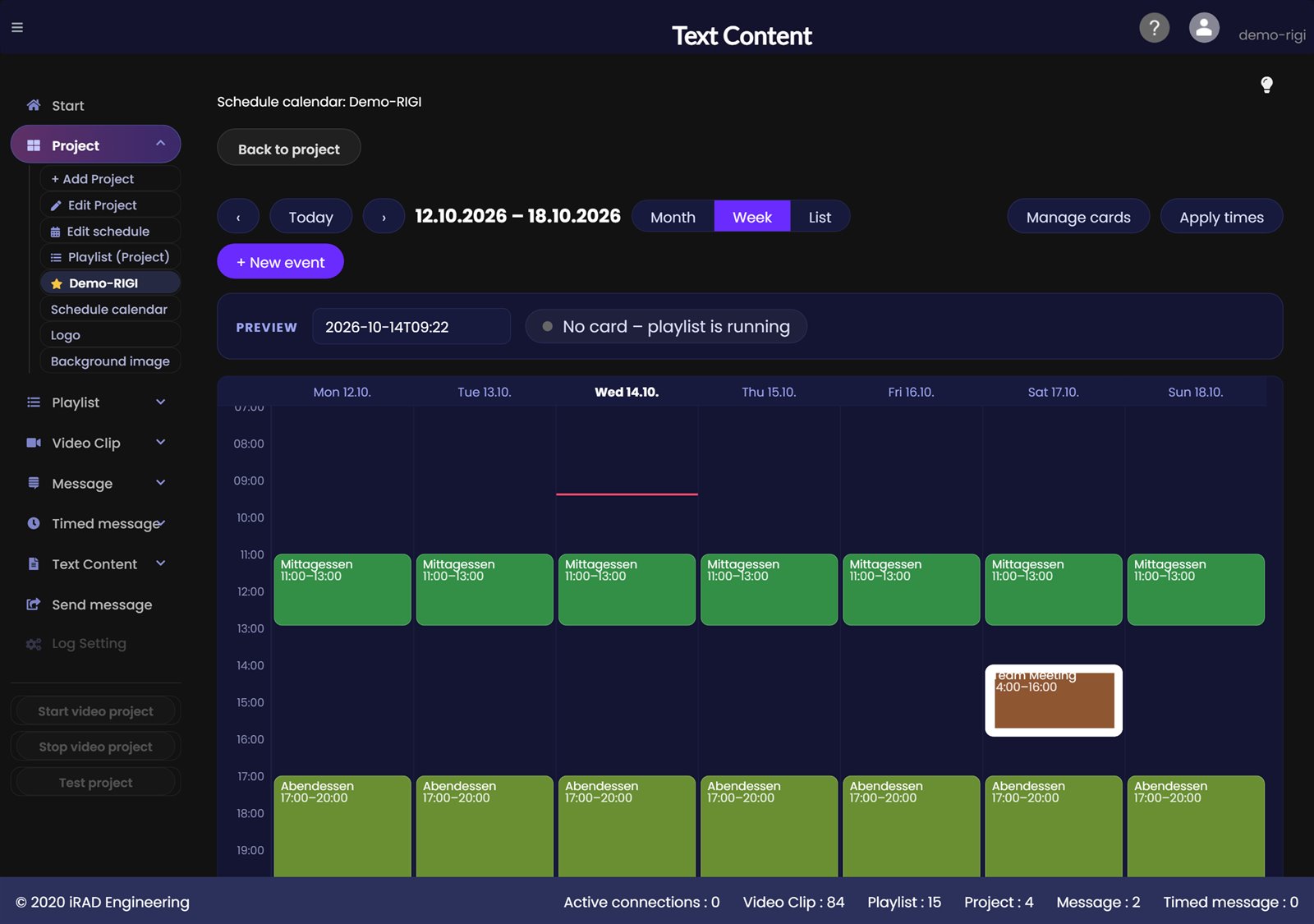

Which card runs? Rules and examples

▶ Watch as animation

If events overlap, the most specific one wins. The order from strong to weak:

1. Priority: overrides all other events (manual priority, ★)
2. Single-date event (a specific date)
3. Period (with Valid from / until)
4. Event with months
5. Weekly rhythm (regular weekdays or daily)
6. On a tie the shorter event wins, then the newer one.

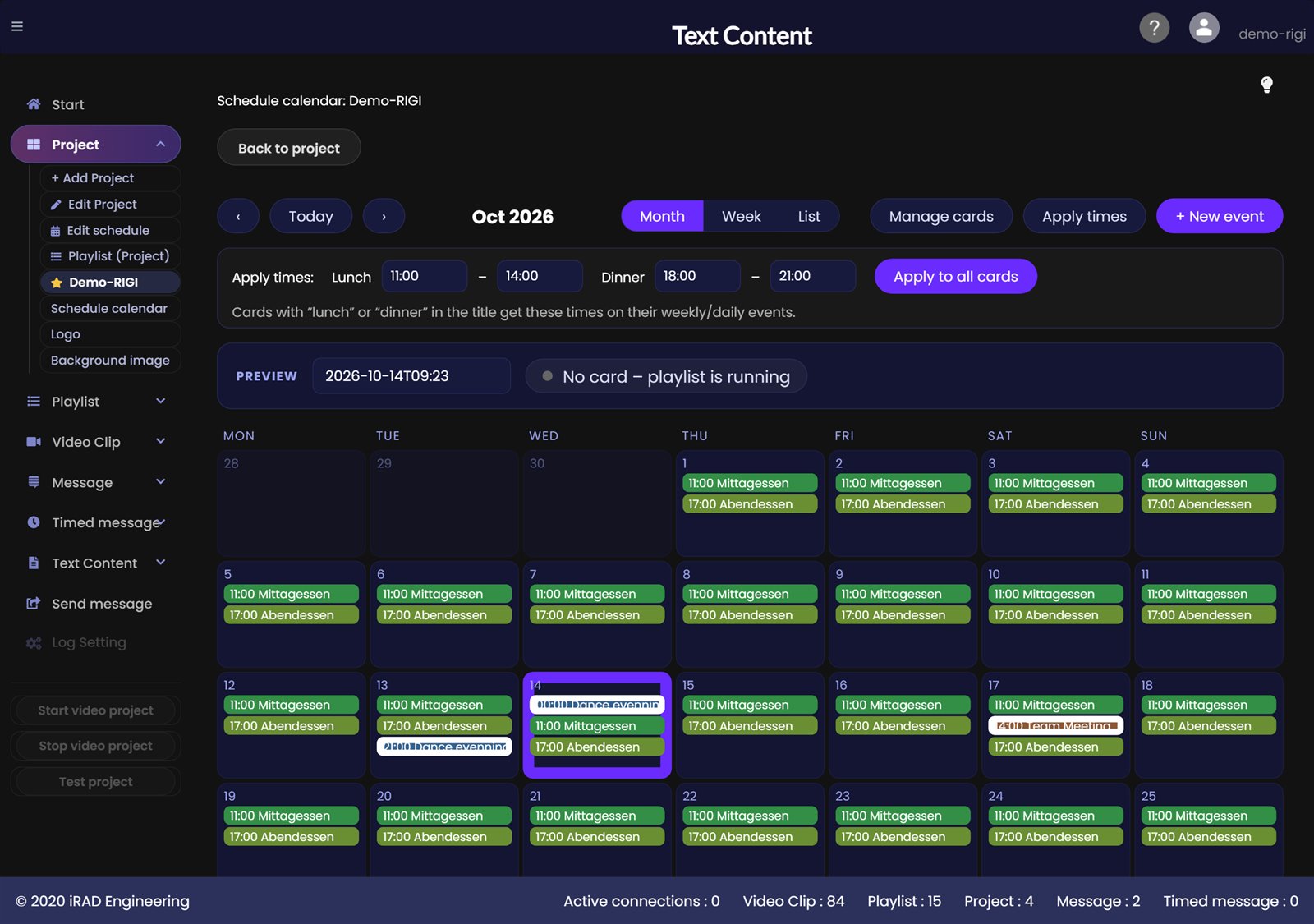

Applying lunch and dinner times

▶ Watch as animation

If lunch and dinner times repeat, enter them once: in the calendar click Apply times, enter lunch and dinner from/to and click Apply to all cards.

Cards with "lunch" in the title get the lunch times, cards with "dinner" the dinner times, on all their weekly and daily events. Single-date events stay unchanged.

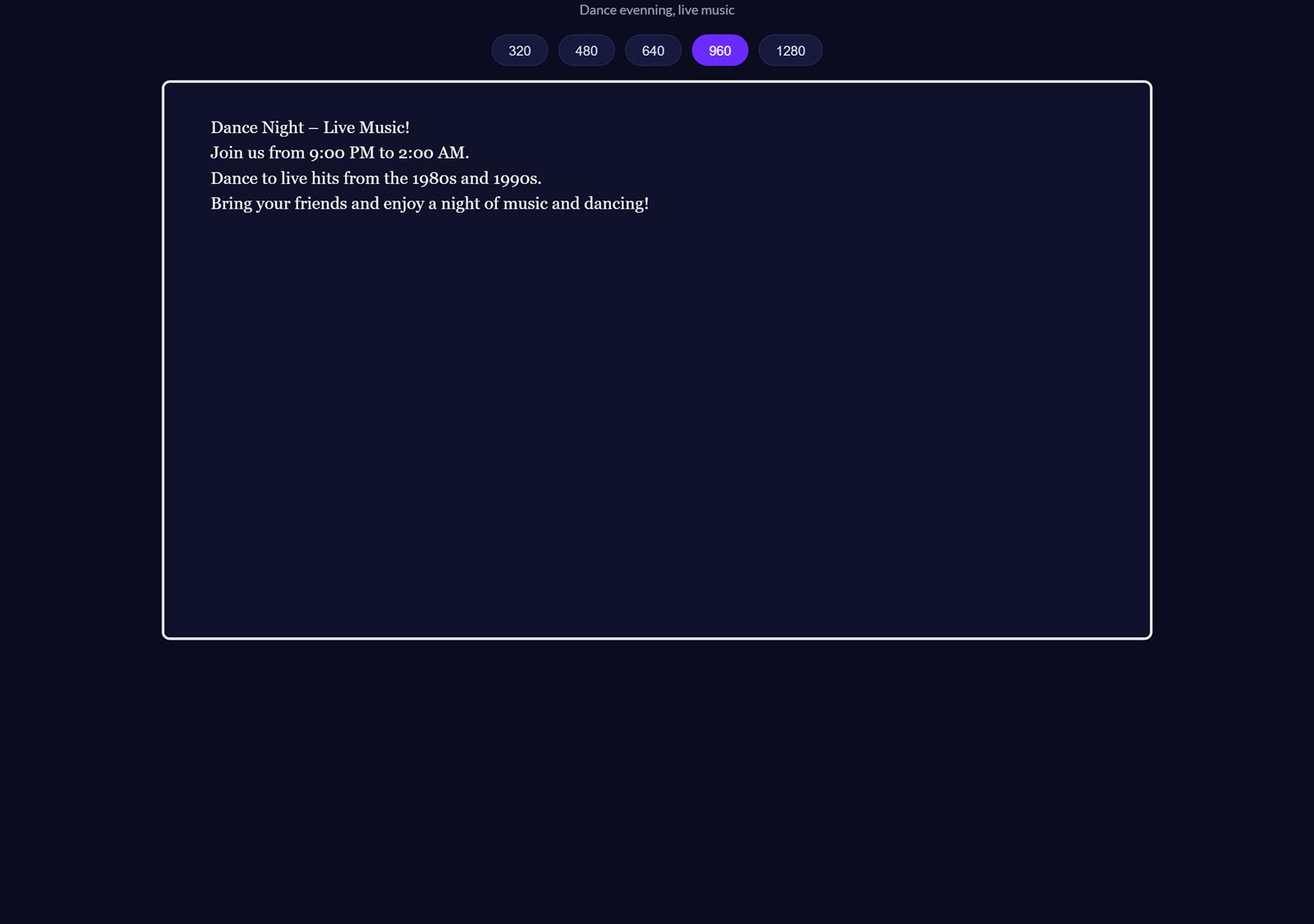

Previewing a card

▶ Watch as animation

There are four places where you can look at a card in advance:

1. Eye icon in the card list and in the project table - opens the card for viewing only in its own window, without the editor. At the top you choose the width (320 to 1280 pixels), long texts scroll as on the screen. If a preview window is already open it comes to the front.
2. Preview in the editor - the same view, straight from the editor.
3. Preview in the event dialog - shows the chosen card in small.
4. Preview field in the calendar - shows for any date and time which card would run then.

Menu Send message

▶ Watch as animation

Click Send message in the menu to open the send dialog.

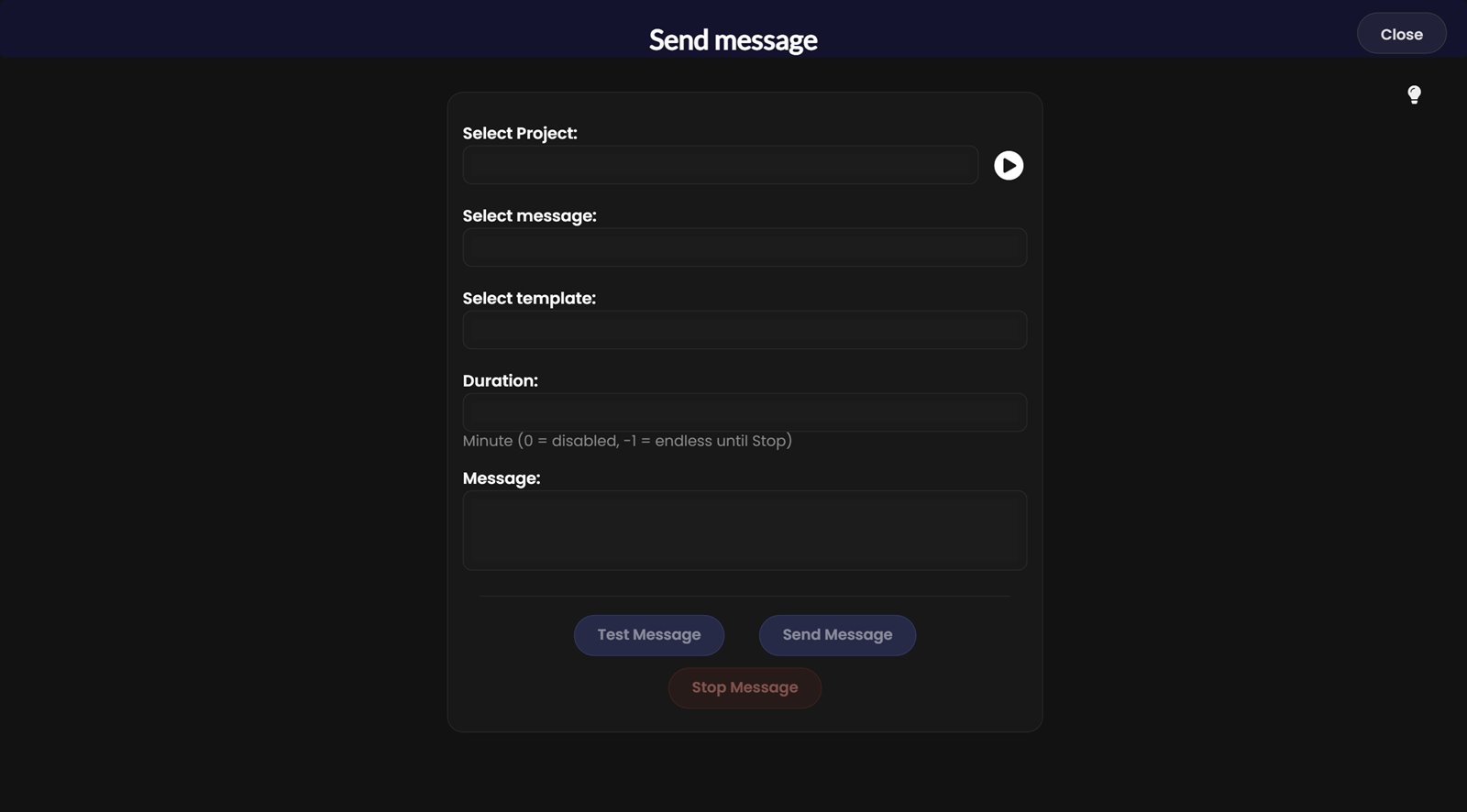

Send message dialog

▶ Watch as animation

1. The indicator next to the project selection shows whether the selected project is active (green = active).
2. Select Project – choose the project that receives the live message.
3. Select message – choose one of your saved messages (not necessary if you use a template).
4. Select template – choose a template (not necessary if you use a saved message).
5. Duration – how long the message is shown, in minutes. 0 = disabled, -1 = endless until you stop it.
6. Enter or change the message text here.
7. Test Message – shows the message in a separate window.
8. Send Message – sends the message to the selected project.
9. Stop Message – stops the active message in the selected project.

Logo overlay

▶ Watch as animation

A logo overlay shows your own logo on top of the video, for example in a corner. Each project has its own logo. Open the page via Edit Project with Edit Logo. You can also reach it directly via Logo in the side menu under Project.

1. Upload Logo – choose the image file of your logo.
2. Logo position – Left Top, Left Bottom, Right Top or Right Bottom.
3. Logo size – adjust the size of the logo with the slider.
4. Save saves the logo, Back returns without saving.
5. Offset X-Position – fine adjustment of the horizontal position.
6. Offset Y-Position – fine adjustment of the vertical position.
7. Preview: ▶ starts the preview, ■ stops it.
8. Video format – choose the format of the preview, for example 4:3 · 1024 × 768. The logo appears in the preview to match that format.

Background image

▶ Watch as animation

You can give each project its own background image. Open the page via Edit Project with Add Background Image. You can also reach it directly via Background image in the side menu under Project.

If no background image is assigned to a project and nothing is currently running, the player shows a default screen with the logo and a note that nothing is streaming at the moment, instead of a black screen.

1. Background image – choose the image file.
2. Select position – Center (the image appears in the middle), Stretch (the image is stretched over the whole area) or Fill (the image fills the whole area proportionally and centred; what does not fit is cut off).
3. Background colour – the colour behind the image, visible where the image does not cover the area.
4. Save saves the background image, Back returns without saving.
5. Video format – choose the format of the preview, for example 4:3 · 1024 × 768, or a format for your iFrame. The preview shows immediately how the image looks in that format. You do not need a start button.

Menu Log Setting

▶ Watch as animation

Here you choose which events of the connected client players are logged for the selected project.

1. Play – log when a clip starts playing.
2. Error – log playback errors.
3. Buffering – monitor the buffering status of the connected player.
4. Ended – monitor the end status of the connected player.
5. Start – monitor the start status of the connected player.

Devices: name and check your screens

Every screen that shows your project link reports itself automatically. In the Devices list you give each screen a name once (for example "1st floor", "Waiting room") and see at a glance which screen is online. All screens keep using the same project link, you do not need a separate link per screen.

1. Open the project link on each screen as usual. Within a minute the screen appears in the list.
2. Click Devices in the menu and select the project.
3. Click the eye icon in a row. The name (or the short device number) is shown in large letters on that one screen for 10 seconds. This is how you find out which row belongs to which screen.
4. Type a name in the Name field and click the disk icon (or press Enter) to save it.

Status – green = the screen reported within the last 3 minutes, red = offline. Browser / system shows the type of device, for example "Samsung TV". Last seen shows when the screen reported last (seconds, minutes, hours or days ago).

Disk – saves the name. Eye – shows the name on that screen for 10 seconds. Trash – removes the device from the list only (the screen itself is not affected). A screen that reports again appears again, without its old name.

Each browser creates its own device number and remembers it. If the browser data of a screen is deleted, the screen appears as a new device and the old row stays as "offline"; delete it with the trash icon.

At the top of the list you can set how often the screens report (1, 2, 3 or 5 minutes, default 1 minute) and how often this list refreshes (15 seconds to 5 minutes). The reporting interval is saved per project and reaches the screens by itself within one cycle. A screen counts as offline after three times this interval, so a failure is noticed after about 3 to 15 minutes. A longer interval puts less load on the server, which matters with many screens. The refresh of the list only affects your own browser.

Monitoring: Project history

▶ Watch as animation

On the start screen you find three history tabs below the video clip list. They show what your clients have done.

1. Click a column title to sort the list, for example by project title.
2. Type a project name to filter the list.
3. Sort by start date/time.
4. Sort by the date and time of the stop.
5. Sort by On/Off status.
6. Total – number of records for the selected project.
7. Choose how many records are shown.
8. Refresh – reload the list with the chosen number of records.

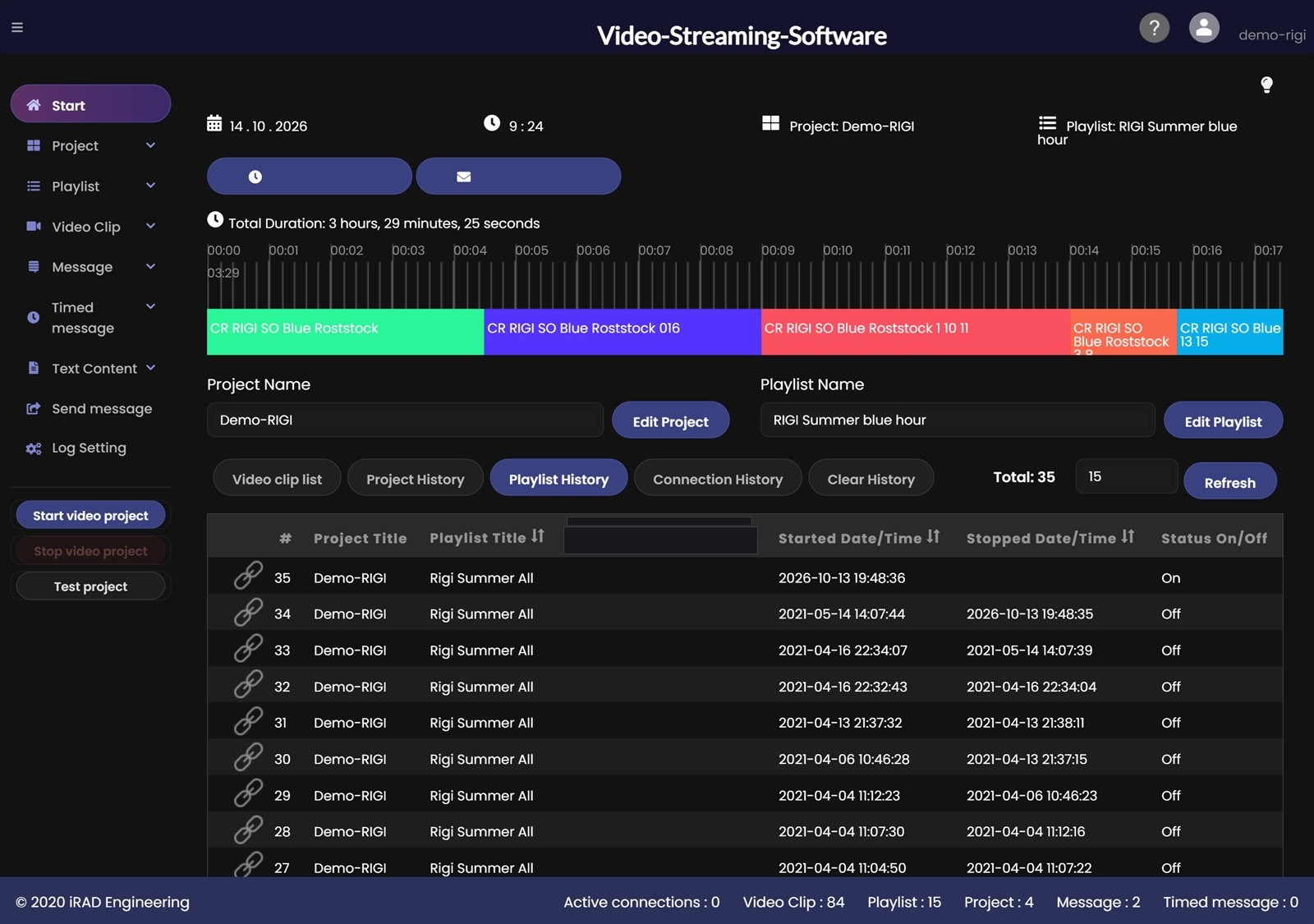

Monitoring: Playlist history

▶ Watch as animation

Works like the project history. Here you follow the history of your playlists.

Monitoring: Connection history

▶ Watch as animation

Works like the project history. Here you follow the history of the connected clients (IP address). Clear History deletes the history.
